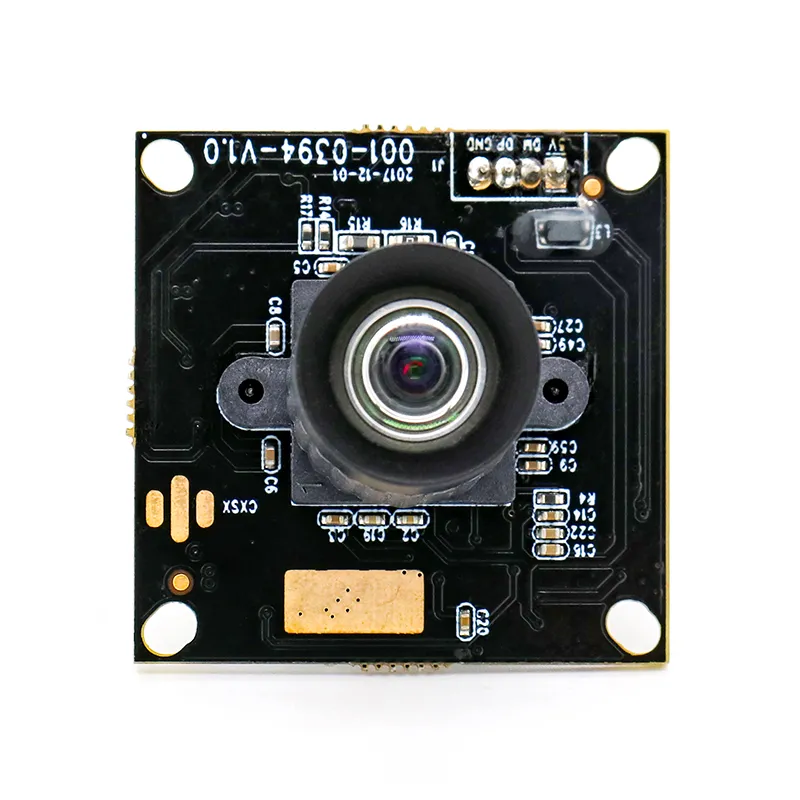

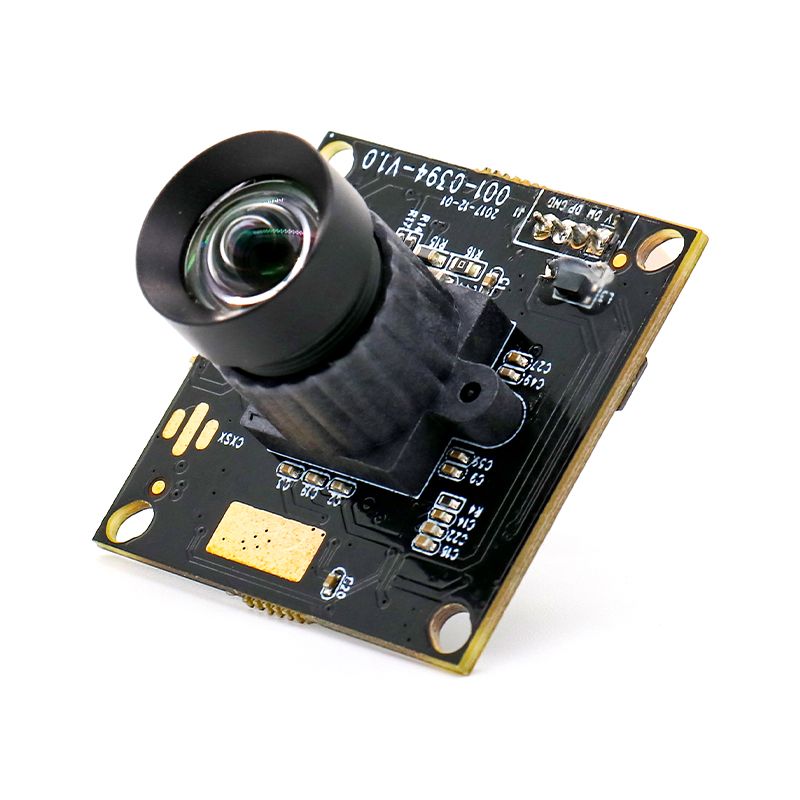

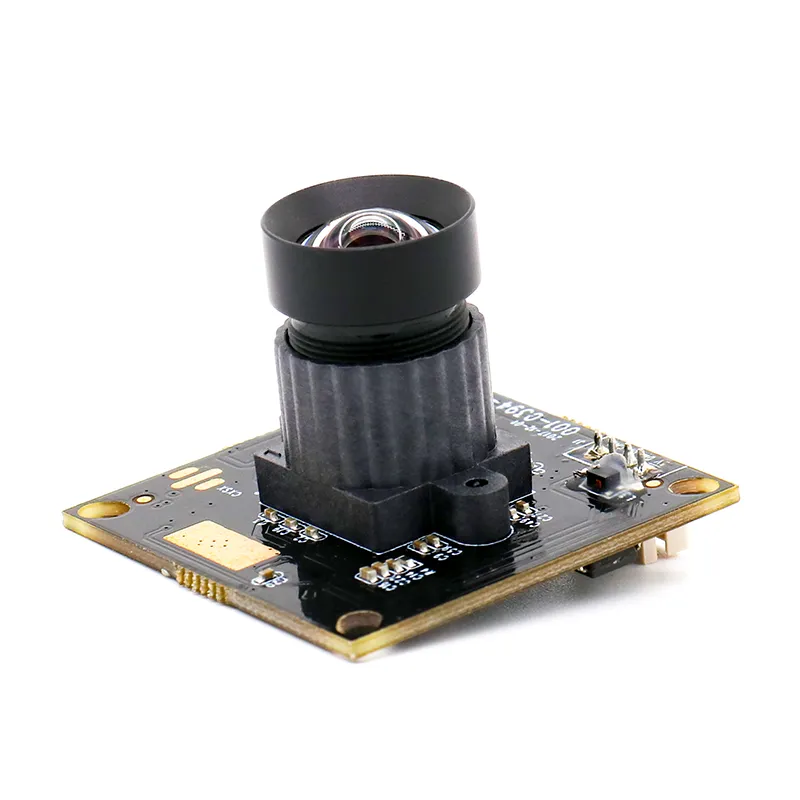

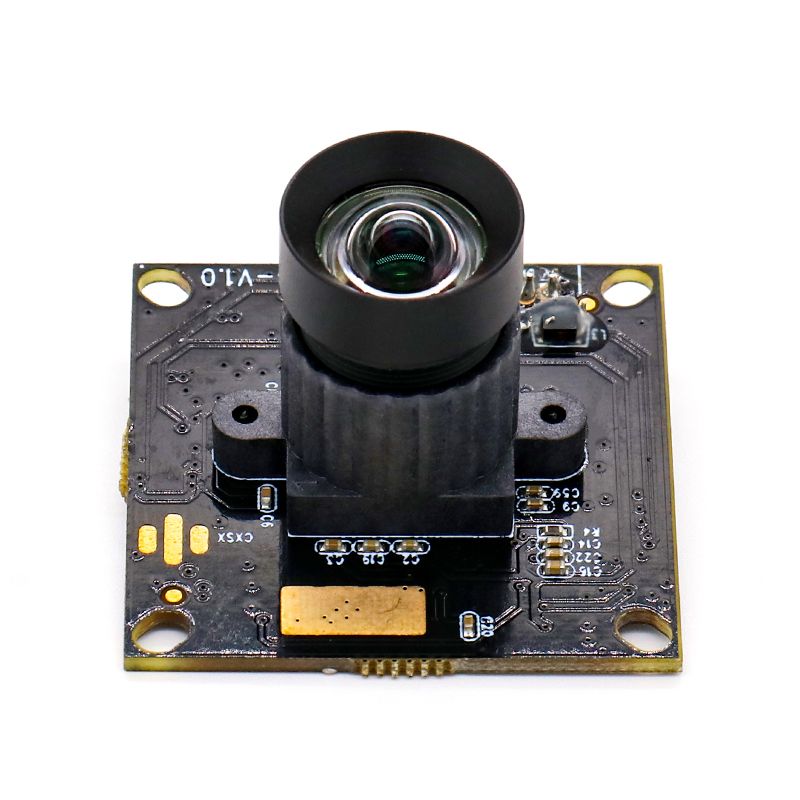

Ar0230 CMOS Camera Module 1080P CMOS HD USB Camera Module
2.0 Megapixel Universal USB Camera Module:1. 1/2.7 inch AR0230 Cmos camera module2. H.264 1080P Cmos USB Camera Module3. USB webcam with UVC, support Windows, Linux, Mac with UVC and Android system.4. USB camera module with 100 degree 5. 38*38/32*32mm mini micro USB board camera Specification:ItemsP......
Send Inquiry
Product Description
2.0 Megapixel Universal USB Camera Module:
0394 Lens Option
Model No. 3428-A1 6047 2181B6 6150-F1 7021-D1 6022-A1
Optical Format 1/2.5" 1/2.7" 1/2.7" 1/2.7" 1/2.7" 1/2.7
EFL 3.6 3.2 3.24 3.0 3.0 3.3
BEL 4.21 2.62 3.95 3.41 3.46 6.88
Construction 2G2P+IR 2G2P 4G2P+IR 2G2P+IR 2G2P 4G
F/No 2.8 1.9 2.7 2.4 2.5 2.2
FOV1/2.5" 96/80/65
FOV1/2.7" 140/115/63 90/82/53 D95 95/86/55 125/100/54
FOV1/3" 125/100/67 90/76/60 89/76/60 108/90/50
IR Filter 650 650 650 650 650
MOD M12*P0.5 M12*P0.5 M12*P0.5 M12*P0.5 M12*P0.5 M12*P0.5
Pictures Display:
Company Information:

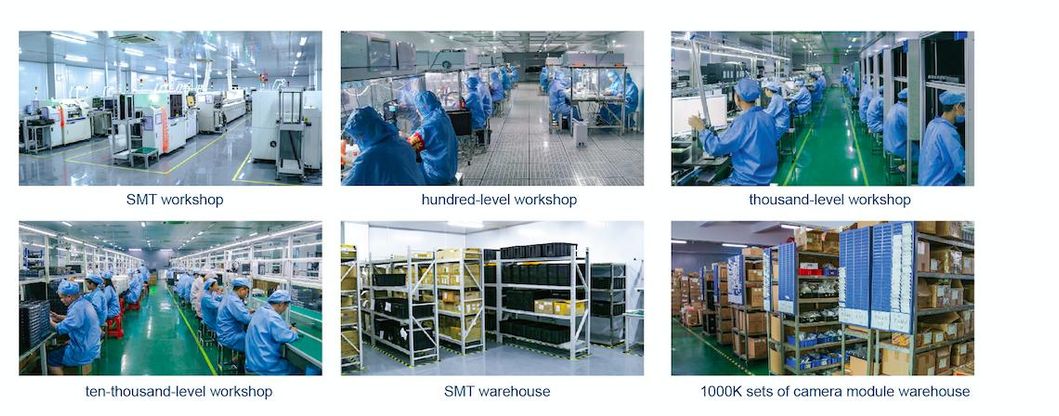

Shenzhen Chuangxinshixun(Dongguan Hampo) Technology Co., Ltd, which was founded in 2014, is a manufacturer specialized in research, design and manufacture of audio and video electronic products. Located in Xintaiyang Industrial Park in Tangxia, Dongguan City, Guangdong,China. Hampo own buildings 58, 26 and 8 as production base, covering 13,000 square meters. Hampo has up to 500 employees.
Main products: Camera modules such as USB camera modules,PEEPHOLE DOOR VIEWER camera module,MIPI camera modules and DVP camera modules; cameras such as PC CAMERA and VIDEO CONFERENCE camera; OID devices such as TALKING PEN and SMART PEN.
Cooperative Companies: Midea and A4 tech, Baidu, Alibaba Group, Huawei, Samsung, Sony,Haier,Orion, and many research institutes.
Technology
Bring in advance technology and machinery equipment, won the title of National High-Tech Enterprise. Having a prossional team on R&D and engineering.
Primary service
We fulfilled the progress from ID layout to structure and from electronic design to the whole process of SMT, focusing and assembly. From the PCBA ,lens assembly to the finished camera.We could provide a complete survice for you.
1. 1/2.7 inch AR0230 Cmos camera module
2. H.264 1080P Cmos USB Camera Module
3. USB webcam with UVC, support Windows, Linux, Mac with UVC and Android system.
4. USB camera module with 100 degree

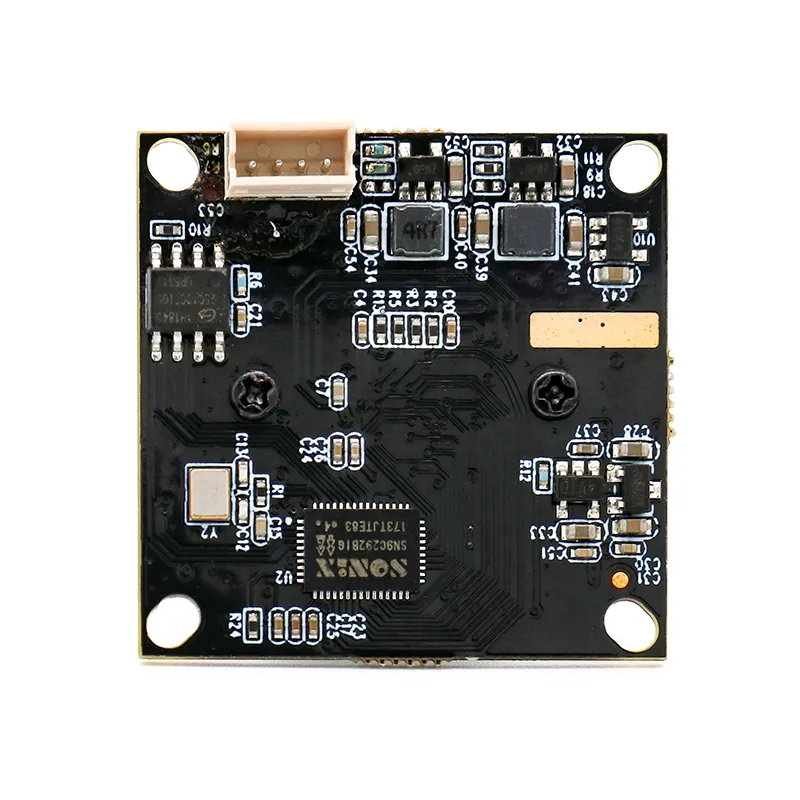

5. 38*38/32*32mm mini micro USB board camera
Specification:
| Items | Parameters |
| SENSOR | AR0230 |
| Lens Size | 1/2.7" |
| Maximum Pixels | 2 mega |
| Maximum Effective Resolution | 1928(H)*1080(V) |
| Data Format | YUY2/MJPG/H.264 |
| Pixel Size | 3.0um*3.0um |
| Dynamic Range | 96DB |
| Lens | FOV :D= 100° |
| Optical length :22MM | |
| lens construction:6E=IR | |
| mount :M12*P0.5mm | |
| Focusing | Fixed focus |
| Frame Rate | 30fps |
| Auto Control | Saturation,Contrast, Acutance,White balance,Exposure |
| Audio | High quality digital MIC, single or dual channel is optional |
| Voltage | DC 5V |
| Working Current | MAX 300mA |
| USB Connector | USB2.0 |
| Storage Temperature | -20-70ºC;Humidity: 90%RH |
| Working Temperature | Change with environmental temperature |
| System Compatibility | 1,Windows XP(SP2,SP3),Vista ,7,8,10 |
| 2,Linux or OS with UVC driver |
0394 Lens Option
Model No. 3428-A1 6047 2181B6 6150-F1 7021-D1 6022-A1
Optical Format 1/2.5" 1/2.7" 1/2.7" 1/2.7" 1/2.7" 1/2.7
EFL 3.6 3.2 3.24 3.0 3.0 3.3
BEL 4.21 2.62 3.95 3.41 3.46 6.88
Construction 2G2P+IR 2G2P 4G2P+IR 2G2P+IR 2G2P 4G
F/No 2.8 1.9 2.7 2.4 2.5 2.2
FOV1/2.5" 96/80/65
FOV1/2.7" 140/115/63 90/82/53 D95 95/86/55 125/100/54
FOV1/3" 125/100/67 90/76/60 89/76/60 108/90/50
IR Filter 650 650 650 650 650
MOD M12*P0.5 M12*P0.5 M12*P0.5 M12*P0.5 M12*P0.5 M12*P0.5
Pictures Display:
Company Information:
Shenzhen Chuangxinshixun(Dongguan Hampo) Technology Co., Ltd, which was founded in 2014, is a manufacturer specialized in research, design and manufacture of audio and video electronic products. Located in Xintaiyang Industrial Park in Tangxia, Dongguan City, Guangdong,China. Hampo own buildings 58, 26 and 8 as production base, covering 13,000 square meters. Hampo has up to 500 employees.
Main products: Camera modules such as USB camera modules,PEEPHOLE DOOR VIEWER camera module,MIPI camera modules and DVP camera modules; cameras such as PC CAMERA and VIDEO CONFERENCE camera; OID devices such as TALKING PEN and SMART PEN.
Cooperative Companies: Midea and A4 tech, Baidu, Alibaba Group, Huawei, Samsung, Sony,Haier,Orion, and many research institutes.
Technology
Bring in advance technology and machinery equipment, won the title of National High-Tech Enterprise. Having a prossional team on R&D and engineering.
Primary service
We fulfilled the progress from ID layout to structure and from electronic design to the whole process of SMT, focusing and assembly. From the PCBA ,lens assembly to the finished camera.We could provide a complete survice for you.
