Home > Products > CCTV Camera > Manufacturers Direct 1080P HD USB Camera Module High-Speed Motion Photos Without Drag Free Drive
Manufacturers Direct 1080P HD USB Camera Module High-Speed Motion Photos Without Drag Free Drive
WDR/ HDR USB CMOS Camera Module AR0230:1. 1/2.7 inch AR0230 Cmos Camera Module2. 2Mega Cmos USB Camera Module3. USB webcam with UVC, support Windows, Linux, Mac with UVC and Android system.4. USB Camera Module with 96 degree 5. 38x38/32*32mm mini micro USB board camera Specification:It......
Send Inquiry
Product Description
WDR/ HDR USB CMOS Camera Module AR0230:

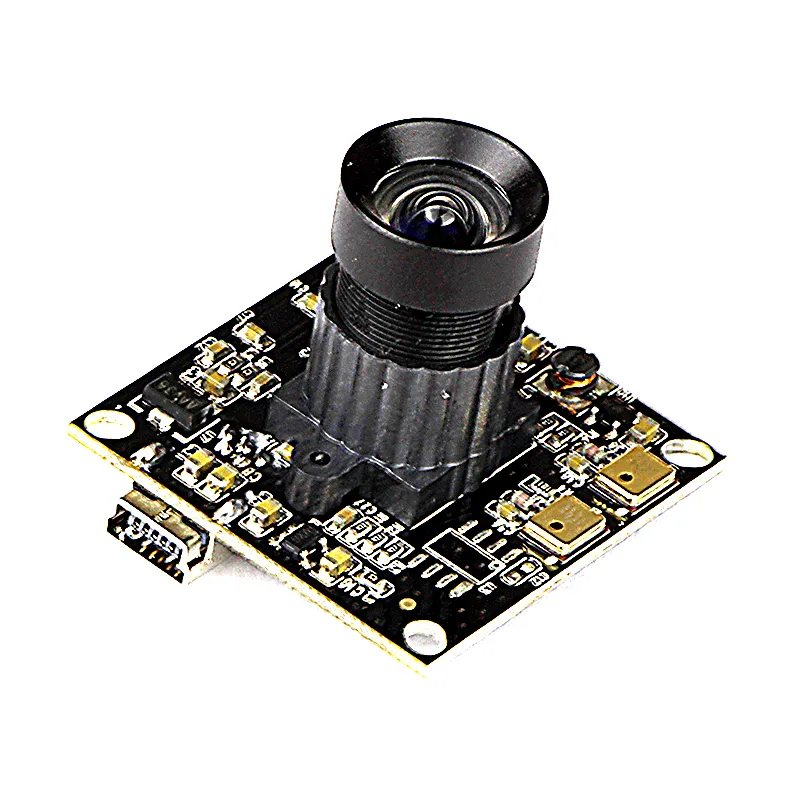

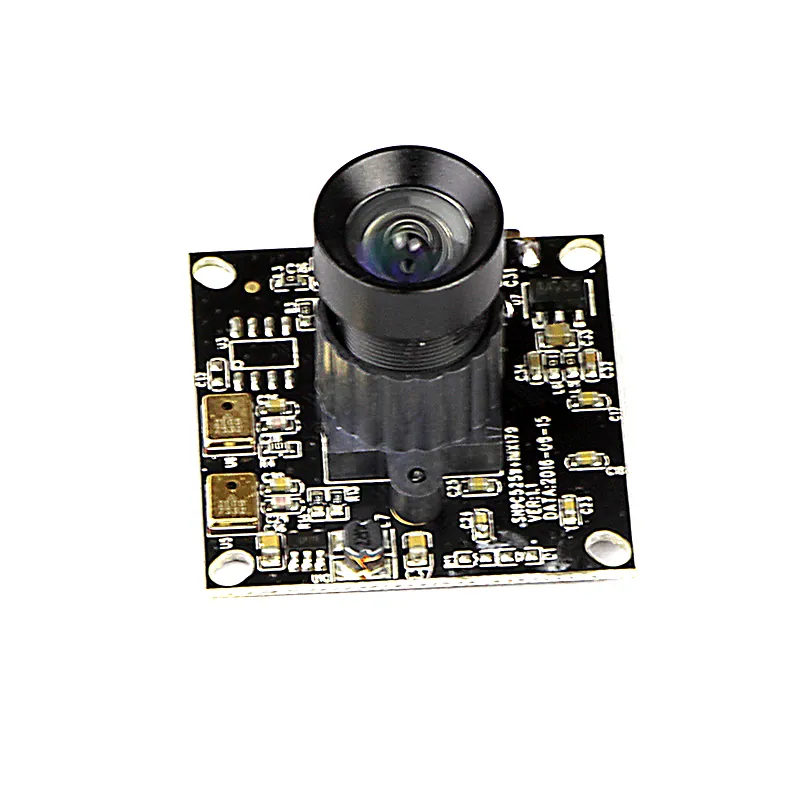

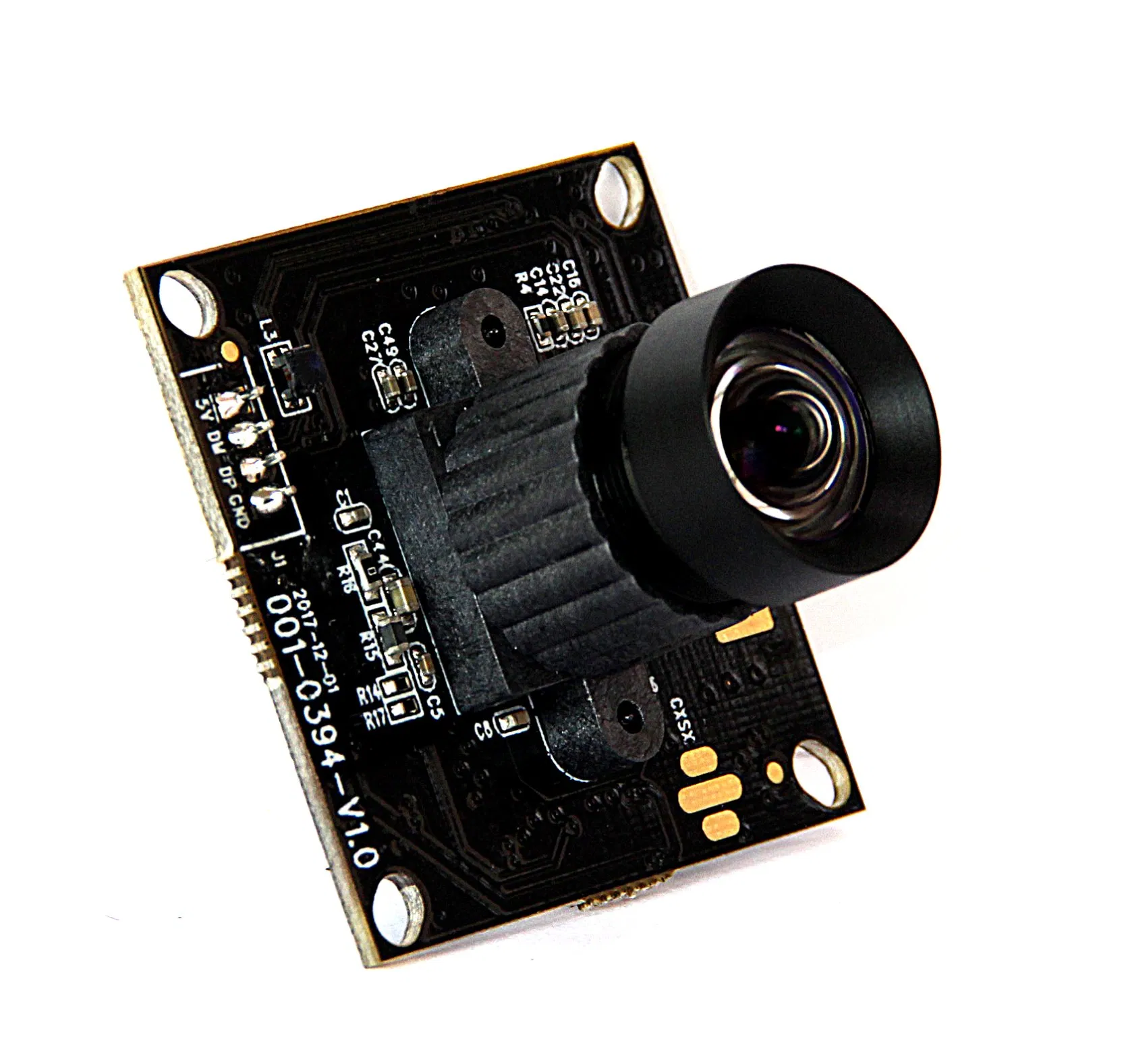

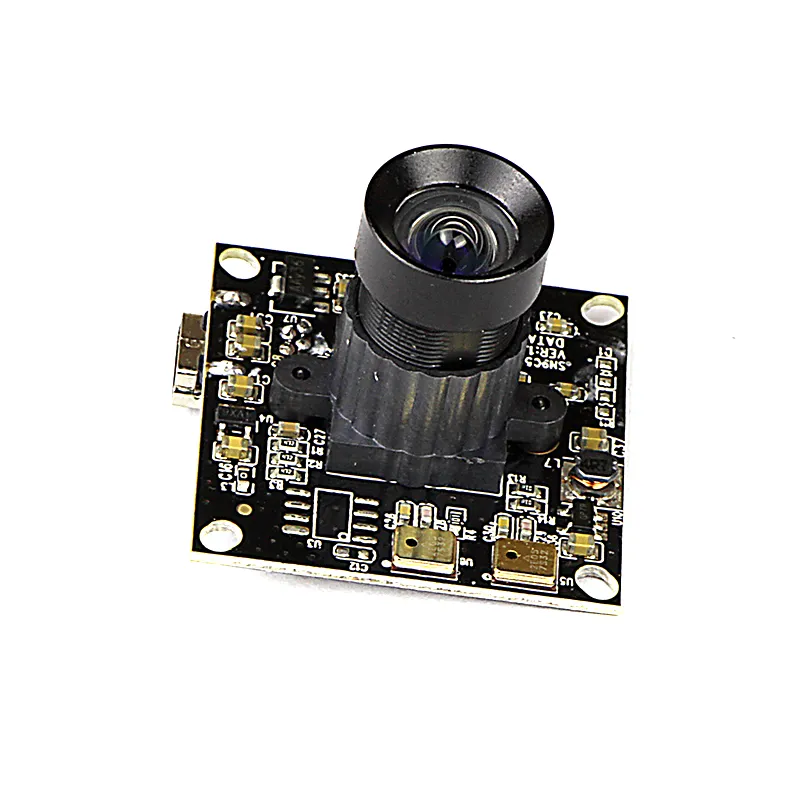

Pictures Display:
Quality Control:
Company Information:
1. 1/2.7 inch AR0230 Cmos Camera Module
2. 2Mega Cmos USB Camera Module
3. USB webcam with UVC, support Windows, Linux, Mac with UVC and Android system.
4. USB Camera Module with 96 degree
5. 38x38/32*32mm mini micro USB board camera
Specification:
| Items | Parameters |
| SENSOR | AR0230 |
| Lens Size | 1/2.7" |
| Maximum Pixels | 2 Mega (1080P) |
| Maximum Effective Resolution | 1928(H)*1088(V) |
| Data Format | YUY2/MJPG |
| Pixel Size | 3.0um*3.0um |
| Dynamic Range | 96DB |
| Lens | FOV :D= 96° |
| Optical length :17.62MM | |
| lens construction: 2P3G+IR | |
| mount :M12*P0.5mm | |
| Focusing | Fixed focus |
| Frame Rate | 30fps |
| Auto Control | Saturation,Contrast, Acutance,White balance,Exposure |
| Audio | High quality digital MIC, single or dual channel is optional |
| Voltage | DC 5V |
| Working Current | MAX 300mA |
| USB Connector | USB2.0 |
| Storage Temperature | -20ºC to +70ºC |
| Working Temperature | Change with environmental temperature |
| System Compatibility | 1,Windows XP(SP2,SP3),Vista ,7,8,10 |
| 2,Linux or OS with UVC driver |
Pictures Display:
Quality Control:
Company Information:
