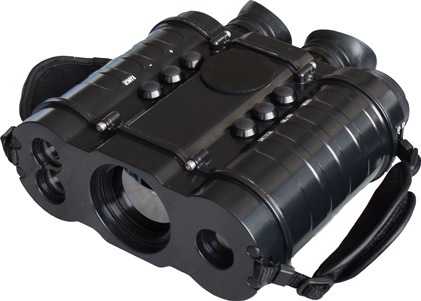

3.3km Hunting Military Portable Thermal Imaging Binoculars

Product Description

1 Features

- 25μm 324x256 high resolution Vox thermal sensor
- NETD50mk, 25hz
- 50mm infrared lens, electric focus
- 35mm day light camera lens, magnification x6.5
- Has Image Denoising and DDE functions, can output hot black/hot white/palette
colors
- Binocular OLED display
- Analog video output, DC12V, built in lithium battery
- IP67

2 Technical indicators

Monitoring distance	Object	Human (1.8m*0.5m)	Vehicle (2.3m*2.3m)
	Detecting distance	1200m	3300m
	Recognition distance	300m	820m
Thermal imaging camera	Pixel	324×256
	Spectral range	8-14μm
	NETD	≤50mK (F1.0, 300K)
	Focal length	50mm / F0.8
	FOV	9.1° x 7.3°
	Focus mode	Electronics
Day light camera	Magnification	×6.5
	FOV	7.8°
	Lens	35mm
Image display	Display	OLED
	Frame rate	25Hz
GPS	Accuracy	10m(rms)
	Satellite	GPS / Beidou-2
Digital compass	Accuracy	±0.5° (Dip angle 0°)
Laser range-finder	Laser type	Semiconductor laser, 1550nm laser wave length
	Detection range	20m-2.5km (for 2.3m*2.3m size object)
	Ranging accuracy	±2m (Within 1km), ±5m (1km -2.5km)
Storage	Capacity	10000 pcs pictures; 30 hours video
Interface	Power Supply	DC12V
	Other interfaces	PAL video output, USB data interface
Power	Voltage	DC12V
	Continuous working time	3 hours
	Consumption	5W
Environmental indicators	Working temperature	-20ºC to +55ºC
	International protection	IP67
Physical characteristics	Weight	≤1.7kg
	Size	223mm × 206mm × 82mm

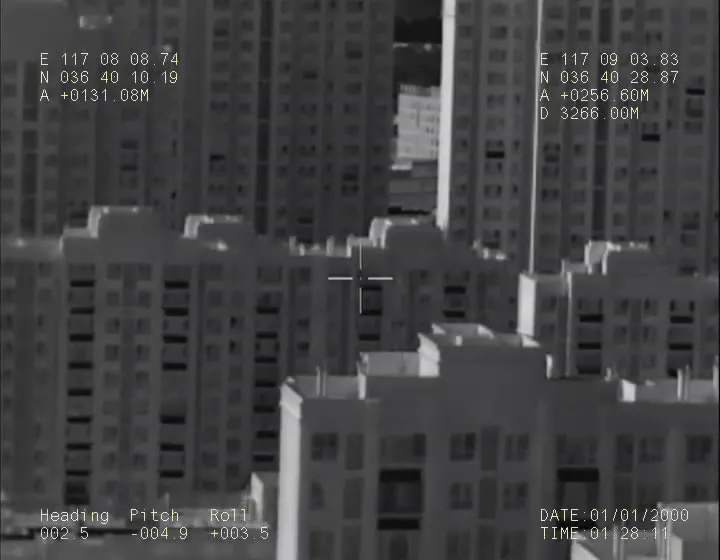

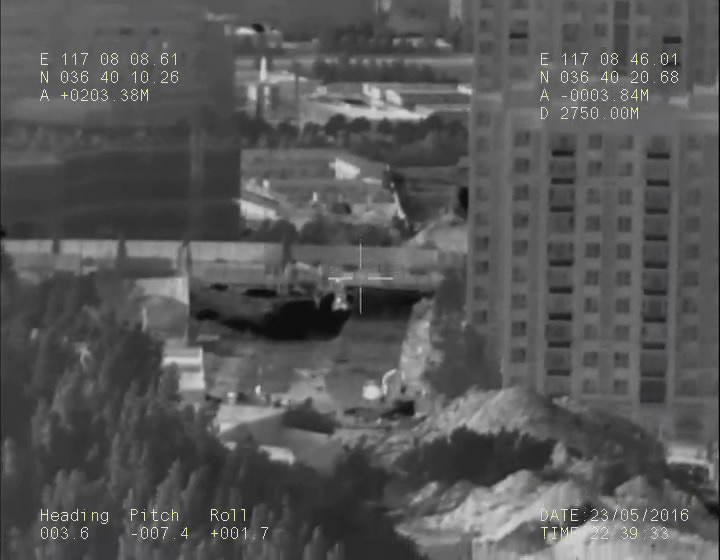

Effect demo
3.3km Hunting Military Portable Thermal Imaging Binoculars

Our Services
(1) We generally offer one year warranty. Extended warranty is also available.
(2) Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed.
(3) We accept OEM.
(4) We offer customized product.

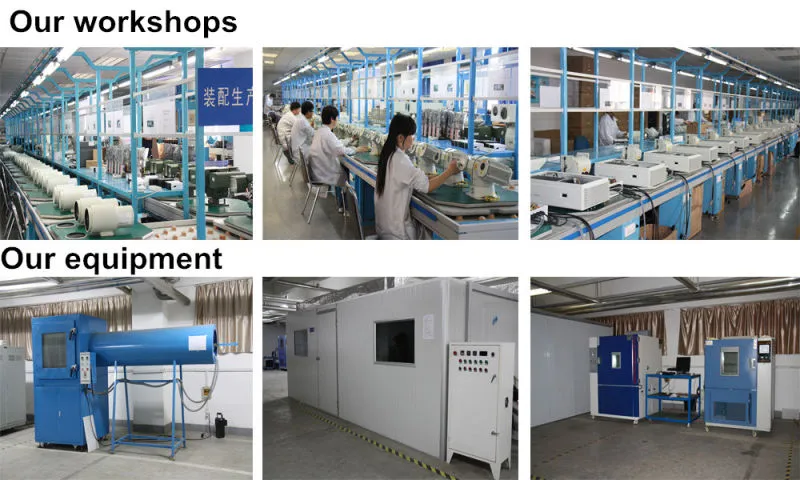

Company Introduction
China Sheenrun Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, Sheenrun adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market.
