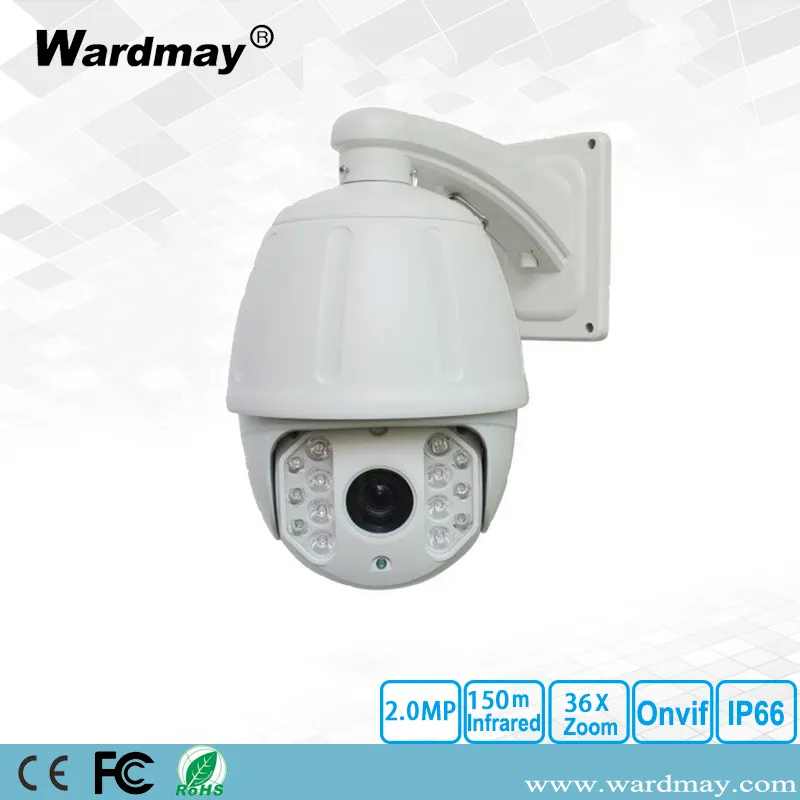

              7" 36X Zoom Network Outdoor IR Dome IP PTZ Camera

              7" 36X Zoom network outdoor ir dome ip ptz cameraFeatures* 7" double layer metal body construction, IP66 rate protection* 1/2.5" CMOS, 2.0/5.0 Megapixels, 36X optical zoom* HD-IP digital interface output, 2.0/5.0MP high definition image* PWM function, intelligent IR illumination &......

              Send Inquiry

              Product Description

              7" 36X Zoom network outdoor ir dome ip ptz camera

              Features
              * 7" double layer metal body construction, IP66 rate protection
              * 1/2.5" CMOS, 2.0/5.0 Megapixels, 36X optical zoom
              * HD-IP digital interface output, 2.0/5.0MP high definition image
              * PWM function, intelligent IR illumination & power consumption is variable, dependant the zoom factor
              * IR distance 150M
              * Support P2P function, Android/iPhone view, OSD menu is available
              * ONVIF2.4 compatible; good compatibility with NVRs like DAHUA , HIKVISION , JUFENG and AXXON , Milestone and so on

              Specification

              Product  Name7" 36X 2.0MP High Speed HD-IP PTZ Camera with OSD
              Camera
              Mode Number WDM-IP8816R/36XWDM-IP8812HR/36X
              Image Sensor  1/2.5'' 2.0M piexls CMOS Hi3516D+Sensor Panasonic 34229  1/2.9'' 5.0M piexls CMOS Hi3516D+Hi3516A+Sony335
              Effective Pixels 2.0MP(1920x1080)5.0MP(2592×1944)
              Min. Illumination Color 0.01Lux@(F1.6, AGC ON) ; black and white 0.001Lux@(F1.6, AGC ON)
              Zoom36X optical zoom,f= 4.6mm-165mm
              Day/NightDay / Night / External control (IR Cut Filter)
              SNR≥50dB(AGC OFF)
              WDRDigital WDR≥70dB
              AGCAuto / Manual
              White balanceAuto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
              Digital noise ReductionDNR, 3DNR
              Network
              Video Compression H.265/H.264/M-JPEG
              Max Image Size1920*1080@20fps2592×1944@30fps
              StreamsDual streams
              Frame RateMain stream: 2.0MP: 1920*1080,1-20fpsMain stream: 1920*1080, 1280*960, 1280*720,720*576, 640*480
              Main stream:  1.0MP: 1280*720,1-30fpsSub-stream: 640*480,480*360, 352*288, 320*240, 176*144
              BitrateCBR/VBR, bitrate; 32Kbps~10Mbps variable
              Audio CompressionG711/ACC
              P2PAndroid / IOS
              ProtocolsTCP/IP,HTTP, NTP,IGMP, DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,PPPoE,P2P
              Motion detect Support
              Privacy Zone MaskingSupport
              Onvif Onvif 2.4
              IR parameters
              Night vision distance150M
              Dome Features
              Pan RangeLevel: 360; vertical: 93
              Tilt Range0~93°(Auto Flip)
              Manual pan speed0-120°/s
              Manual tilt speed 0-60°/s
              Proportional transmissionAutomatic matching of speed and focal length
              Preset points220
              Operation OSD languageChinese /English
              General
              Work temperature-40ºC~+70ºC
              Work Humidity 0%~95% (Non condensing)
              Temperature controlIntelligent control
              PowerDC12V(3A) / AC24V(3A)
              Consumption ≤15W
              Lightning ProtectionTransient Voltage 6000V

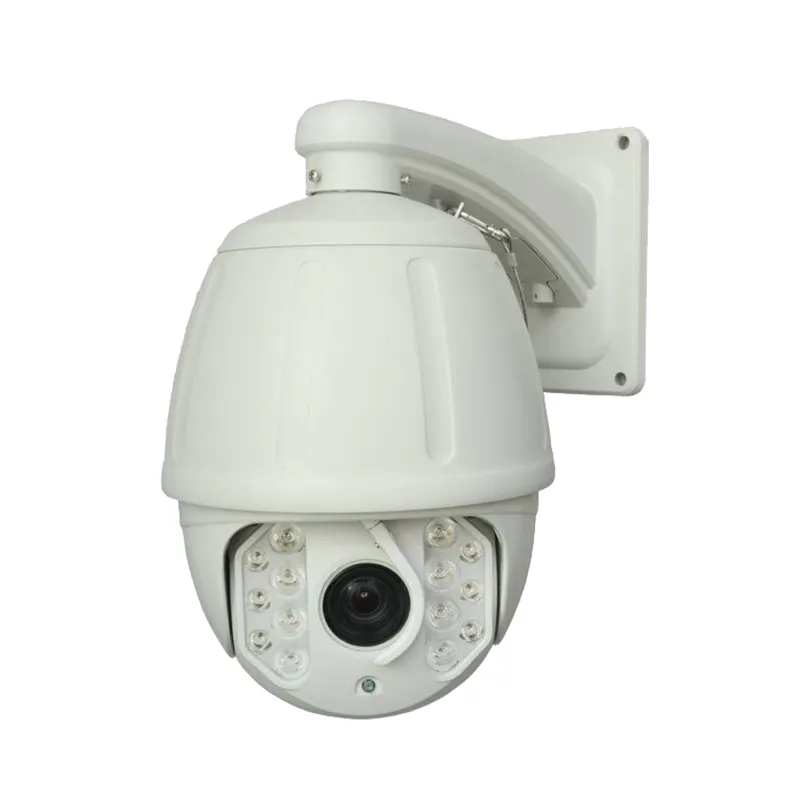

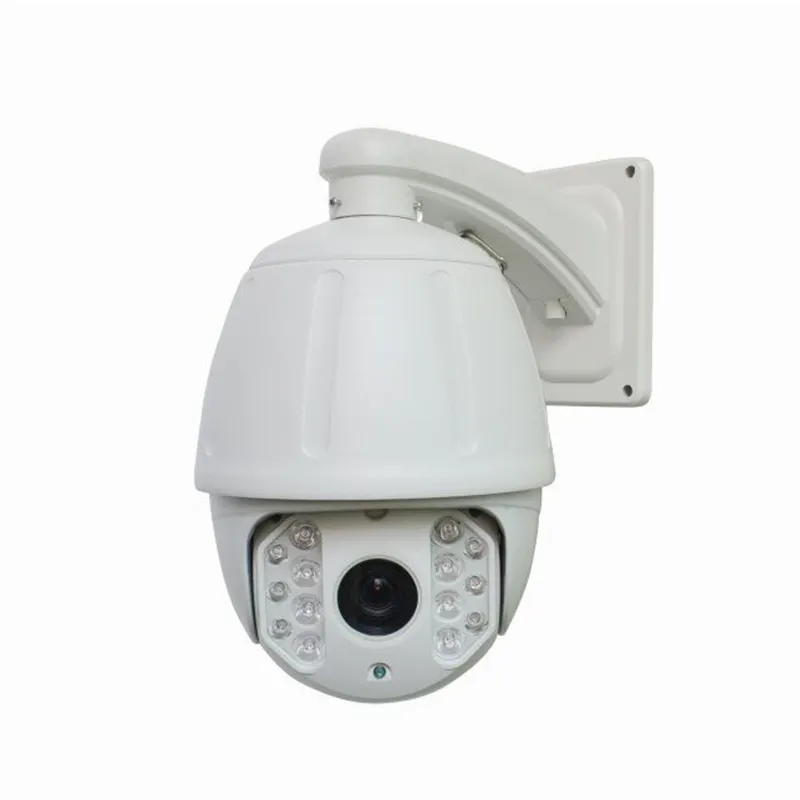

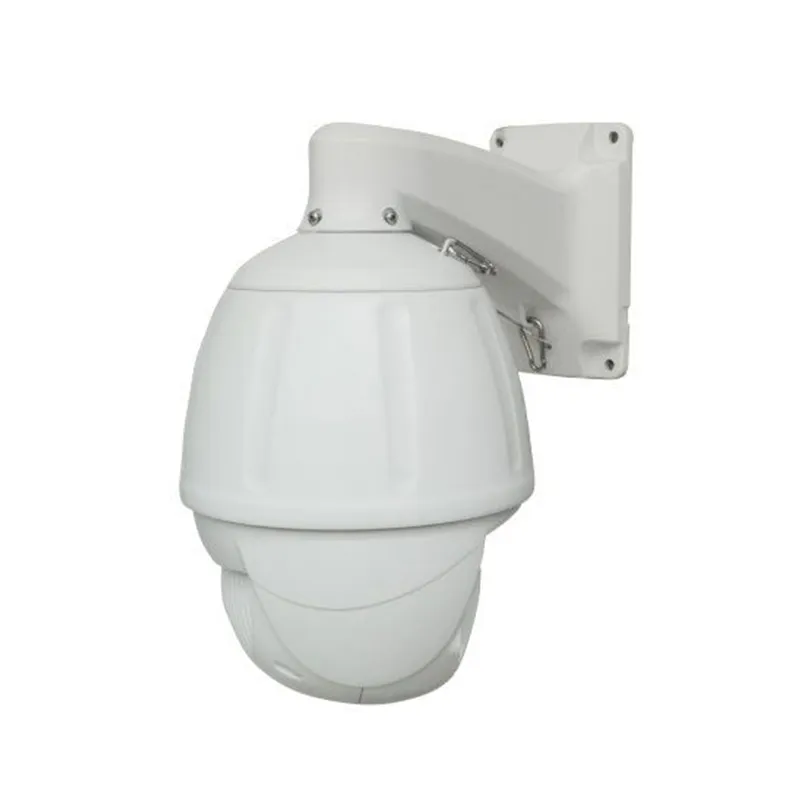

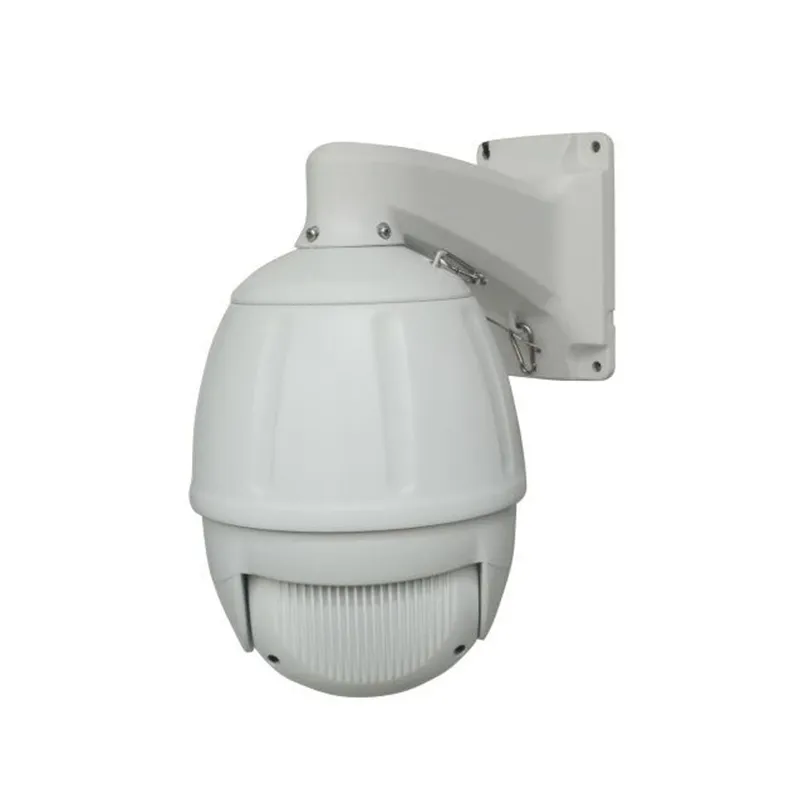

              Product Show
