Digital Computer Live Webcast Camera Module USB Free Driver Binocular Wide Dynamic Witness Visit Aircraft
Digital computer live webcast camera module USB free driver binocular wide dynamic witness visit aircraft1. Biological detection AR0230 Cmos camera module2. FULL HD 1080P Cmos USB Camera Module3. USB webcam with UVC, support windows, linux, Mac with UVC and android system.4. USB camera modu......
Send Inquiry
Product Description
Digital computer live webcast camera module USB free driver binocular wide dynamic witness visit aircraft

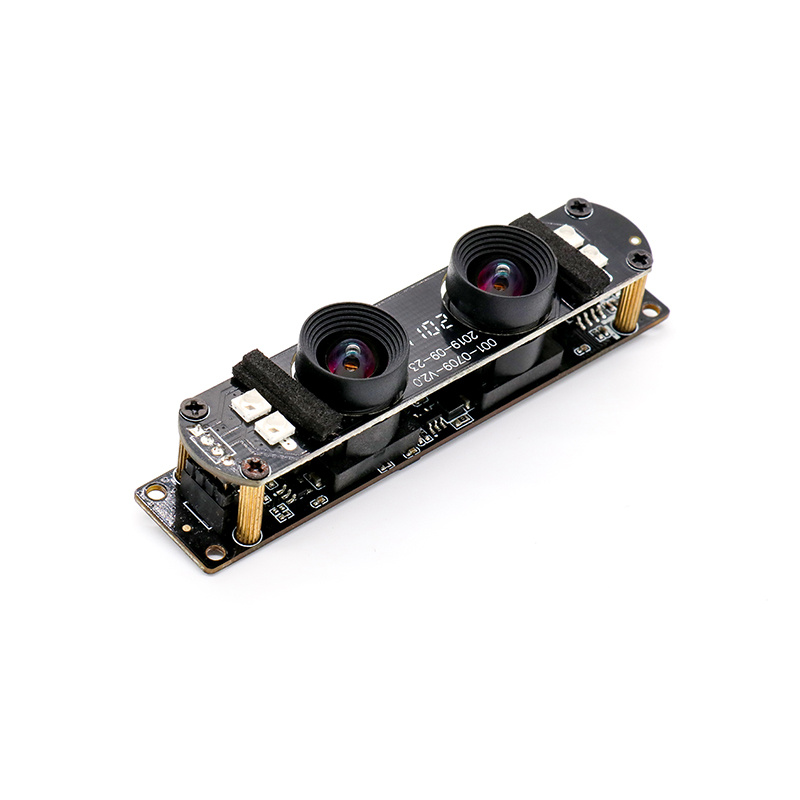

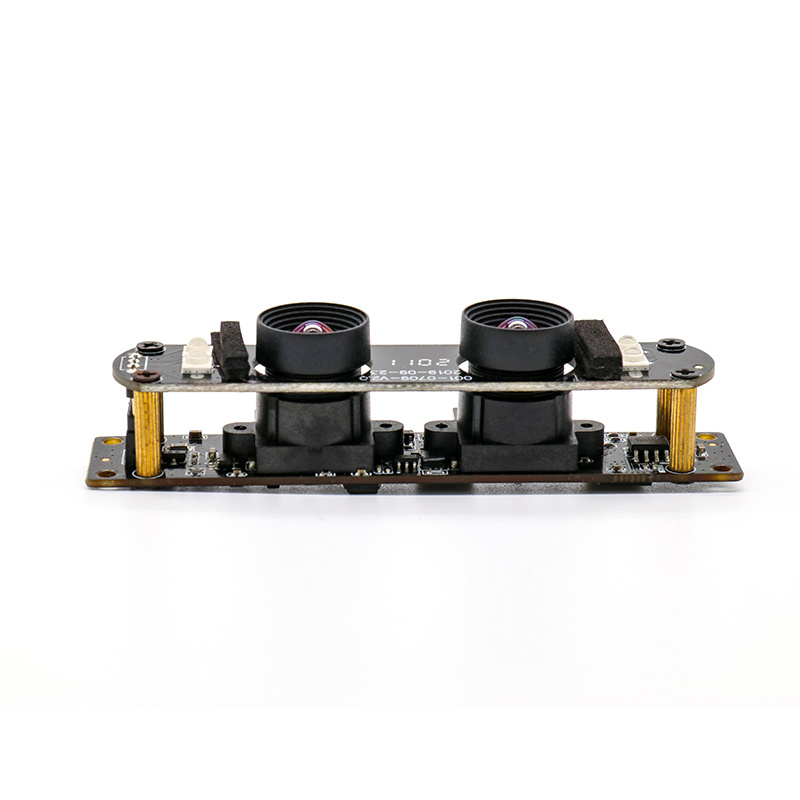

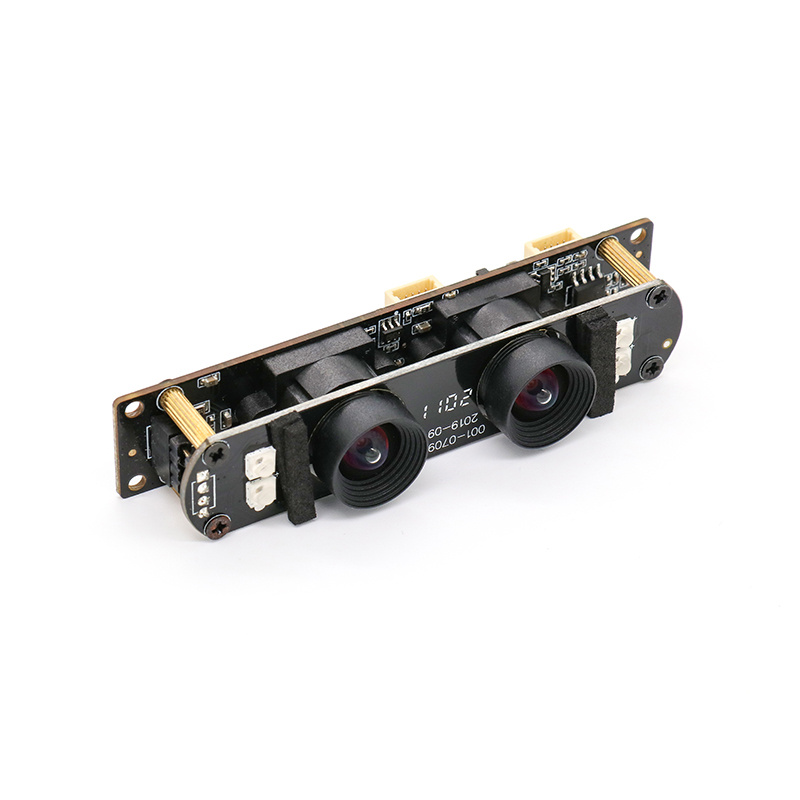

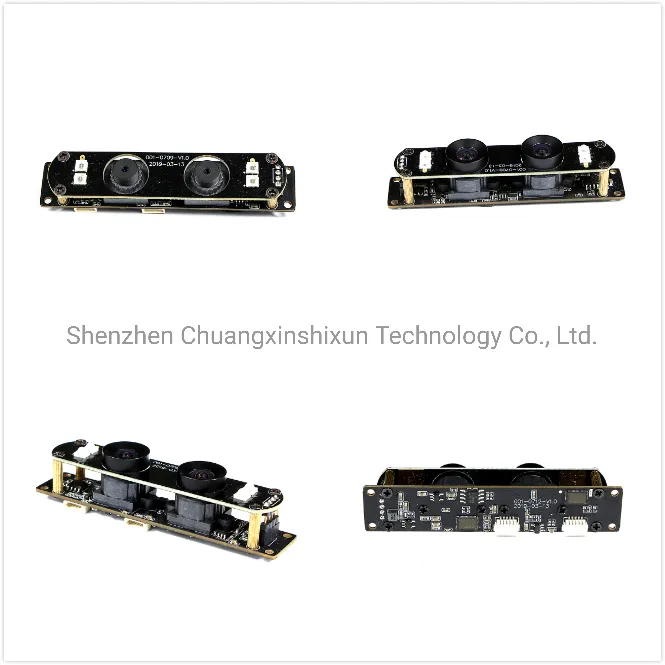

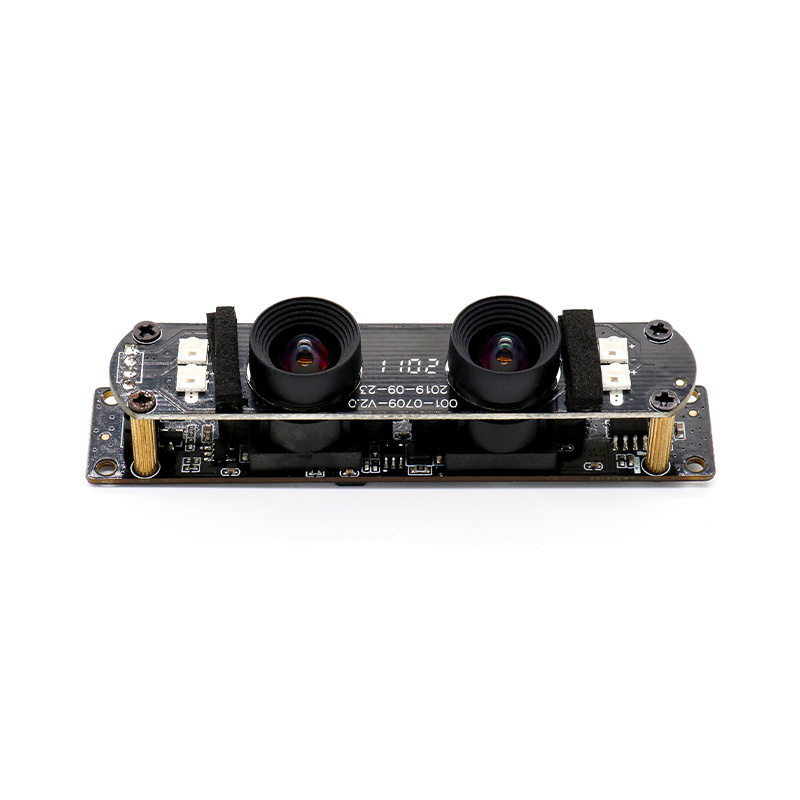

Pictures Display:
Quality Control:
Company information:
1. Biological detection AR0230 Cmos camera module
2. FULL HD 1080P Cmos USB Camera Module
3. USB webcam with UVC, support windows, linux, Mac with UVC and android system.
4. USB camera module with 95 degree
5. 80*16*11.6mm mini micro usb board camera
Specification:
| Items | Parameters | |
| IR Camera | Color Camera | |
| SENSOR | RXSX2719 | AR0230,wide dynamic color photosensitive chip |
| Maximum Effective Pixels | 1920*1080 | 1928*1088 |
| Lens Size | 1/2.7 inch | 1/2.7 inch |
| Data Format | MJPG/YUY2 | MJPG/YUY2 |
| Pixel Size | 3.0um*3.0um | 1920*1080, 1280*720, 640*480, 320*240 |
| Dynamic Range | 76db | Up to 105db |
| Lens | FOV :D= 95° | FOV :D= 95° |
| Optical Length :15.29MM | Optical Length :15.29MM | |
| Lens Construction:2G2P+IR(850nm Filter) | Lens Construction:2G2P+IR(650nm Filter) | |
| Mount :M12*P0.5mm | Mount :M12*P0.5mm | |
| Focusing | Fixed focus | Fixed focus |
| Frame Rate | 1080P 30fps Max | 30fps |
| Auto Control | Saturation,Contrast, Acutance,White balance,Exposure | Saturation,Contrast, Acutance,White balance,Exposure |
| Audio | / | / |
| Voltage | DC 5V | DC 5V |
| Working Current | MAX 200mA | MAX 200mA |
| USB Connector | USB2.0/3.0 | USB2.0 |
| Storage Temperature | -20ºC to +70ºC | -20ºC to +70ºC |
| Working Temperature | Change with environmental temperature | 0ºCto +60ºC |
| System Compatibility | 1,Windows XP(SP2,SP3),Vista ,7,8,10 | 1,Windows XP(SP2,SP3),Vista ,7,8,10 |
| 2,Linux or OS with UVC driver | 2,Linux or OS with UVC driver | |
Pictures Display:
Quality Control:
Company information:
