Home > Products > CCTV Camera > Free Driver 2MP Wide Angle USB Camera 1080P 30fps Ar0230 HD USB2.0 Camera Module
Free Driver 2MP Wide Angle USB Camera 1080P 30fps Ar0230 HD USB2.0 Camera Module
Free Driver 2MP Wide Angle USB Camera 1080P 30fps Ar0230 HD USB2.0 Camera Module:1. 1/2.7 inch AR0230 Cmos camera module2. FULL HD 1080P Cmos USB Camera Module3. USB webcam with UVC, support windows, linux, Mac with UVC and android system.4. USB camera module with 100 degree 5. 38*38/32*......
Send Inquiry
Product Description
Free Driver 2MP Wide Angle USB Camera 1080P 30fps Ar0230 HD USB2.0 Camera Module:

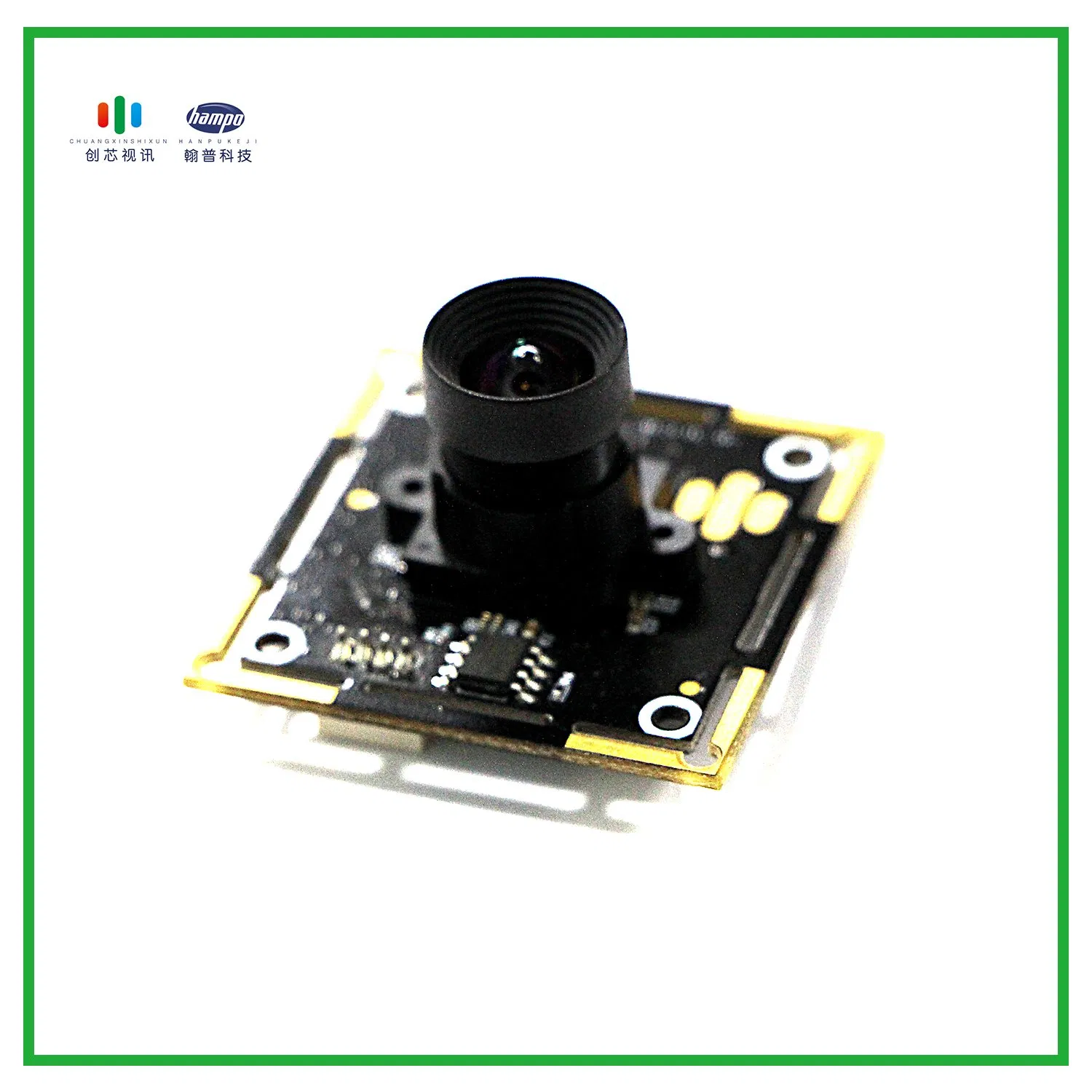

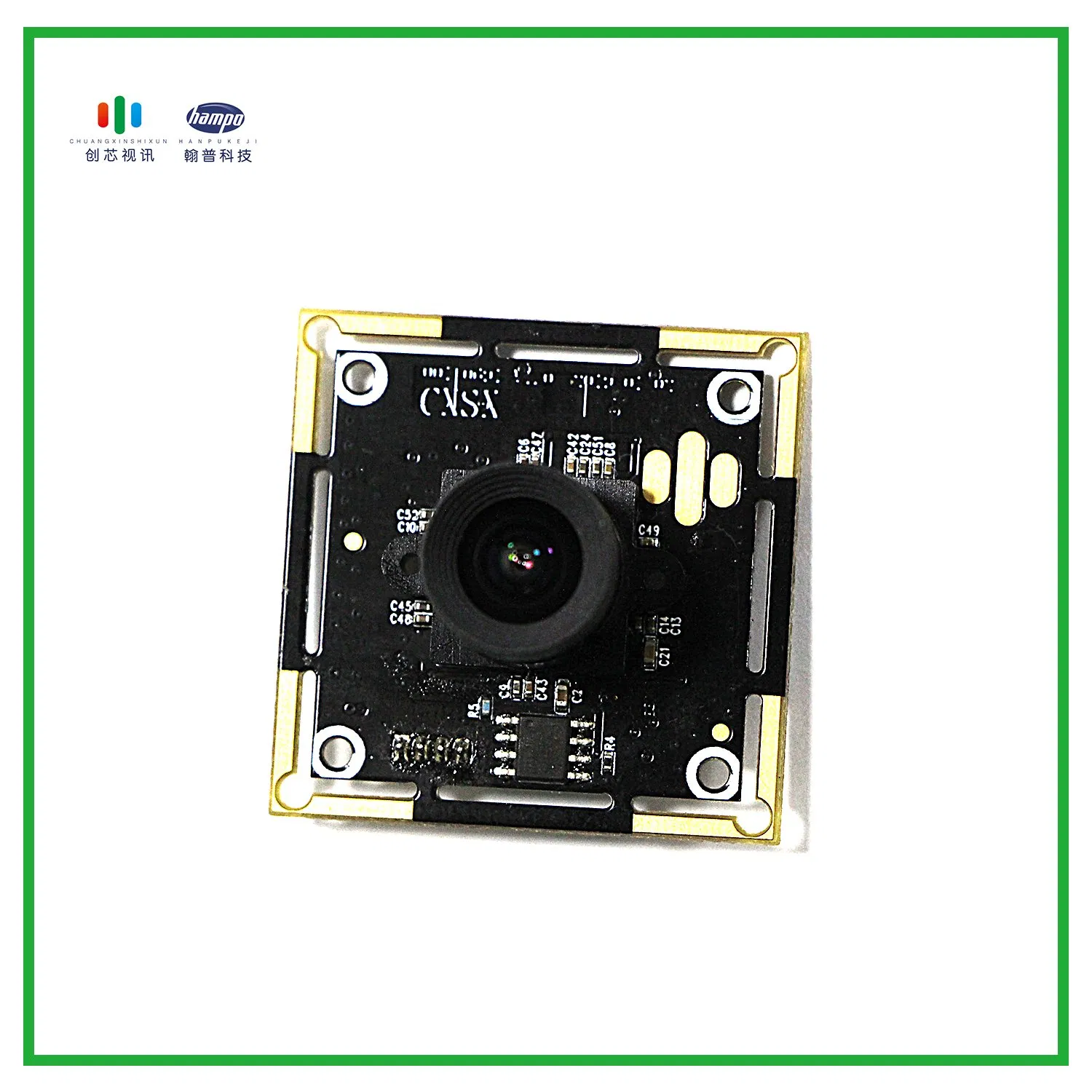

Pictures Display:

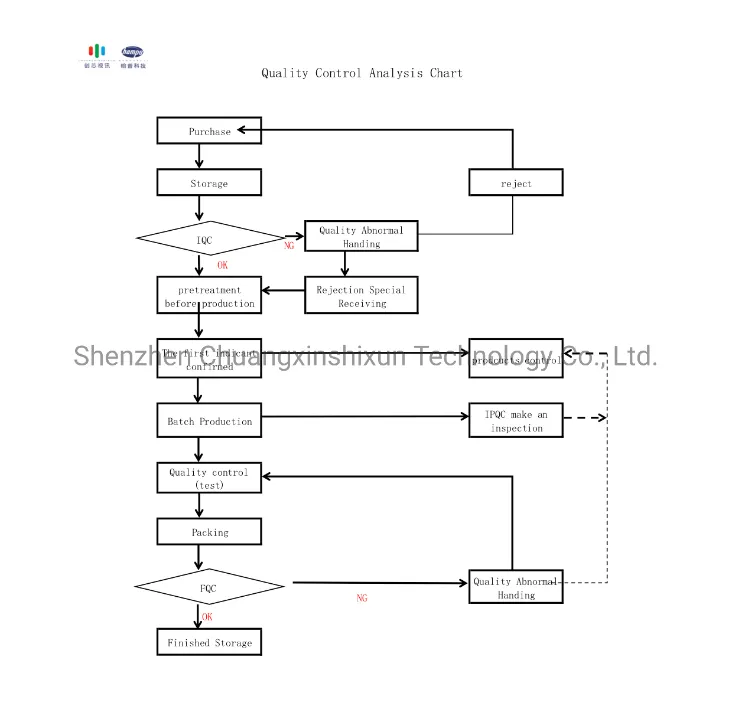

Quality Control:
Company information:
1. 1/2.7 inch AR0230 Cmos camera module
2. FULL HD 1080P Cmos USB Camera Module
3. USB webcam with UVC, support windows, linux, Mac with UVC and android system.
4. USB camera module with 100 degree
5. 38*38/32*32mm mini micro usb board camera
6. Customization services be offered
Specification:
| Items | Parameters |
| SENSOR | AR0230 |
| Lens Size | 1/2.7" |
| Maximum Pixels | 2 mega |
| Maximum Effective Resolution | 1928(H)*1088(V) |
| Data Format | YUY2/MJPG |
| Pixel Size | 3.0um*3.0um |
| Dynamic Range | 96DB |
| Lens | FOV :D= 100° |
| Optical length :22MM | |
| lens construction:4G=IR | |
| mount :M12*P0.5mm | |
| Focusing | Fixed focus |
| Frame Rate | 30fps |
| Auto Control | Saturation,Contrast, Acutance,White balance,Exposure |
| Voltage | DC 5V |
| Working Current | MAX 300mA |
| USB Connector | USB2.0 |
| Storage Temperature | -20-70ºC; humidity: 90%RH |
| Working Temperature | Change with environmental temperature |
| System Compatibility | 1,Windows XP(SP2,SP3),Vista ,7,8,10 |
| 2,Linux or OS with UVC driver |

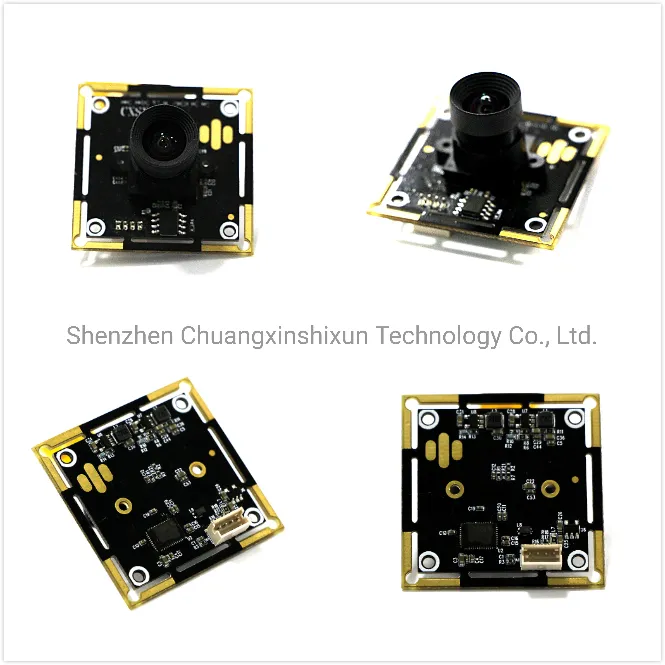

Pictures Display:
Quality Control:
Company information:
