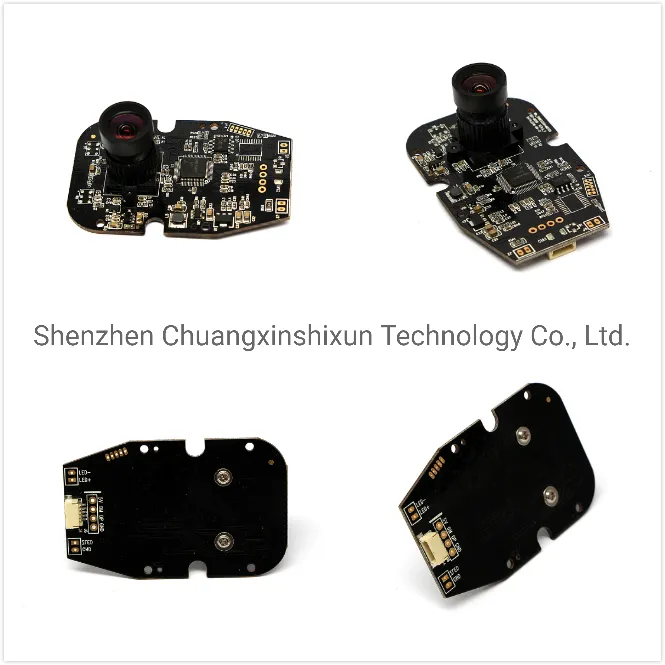

High Resolution 5 Megapixels CMOS Camera Module
High Resolution 5 Megapixels CMOS Camera Module:1. 1/2.5 inch MI5100Cmos Camera Module2. High quality digital MIC, single or dual channel is optional3. USB webcam with UVC, support Windows, Linux, Mac with UVC and Android system.4. USB Camera Module with 95 degree 5. 58*28mm mini mic......
Send Inquiry
Product Description
High Resolution 5 Megapixels CMOS Camera Module:
Quality Control:
Company Information:
1. 1/2.5 inch MI5100Cmos Camera Module
2. High quality digital MIC, single or dual channel is optional
3. USB webcam with UVC, support Windows, Linux, Mac with UVC and Android system.
4. USB Camera Module with 95 degree
5. 58*28mm mini micro USB board camera
Specification:
| Items | Parameters |
| SENSOR | MI5100 |
| Lens Size | 1/2.5-inch (4:3) |
| Most Effective Pixels | 2,592H x 1,944V |
| Data Format | MJPG/YUY2 |
| Pixel Size | 2.2µm x 2.2µm |
| Dynamic Range | 70.1dB |
| Lens | FOV :D=95° |
| Optical length:15.59±0.2 | |
| lens construction:4E+IR | |
| mount:M12*P0.5 | |
| Focusing | Fixed Focus |
| Frame Rate | 30fps |
| Auto Control | Saturation,Contrast,Acutance,White balance,Exposure |
| Audio | High quality digital MIC, single or dual channel is optional |
| Voltage | DC 5V |
| Working Current | MAX 300mA |
| USB Connector | USB2.0 |
| Storage Temperature | -20ºC to +70ºC |
| Working Temperature | Change with environmental temperature |
| System Compatibility | 1,Windows XP(SP2,SP3),Vista ,7,8,10 |
| 2,Linux or OS with UVC driver |
Pictures Display:

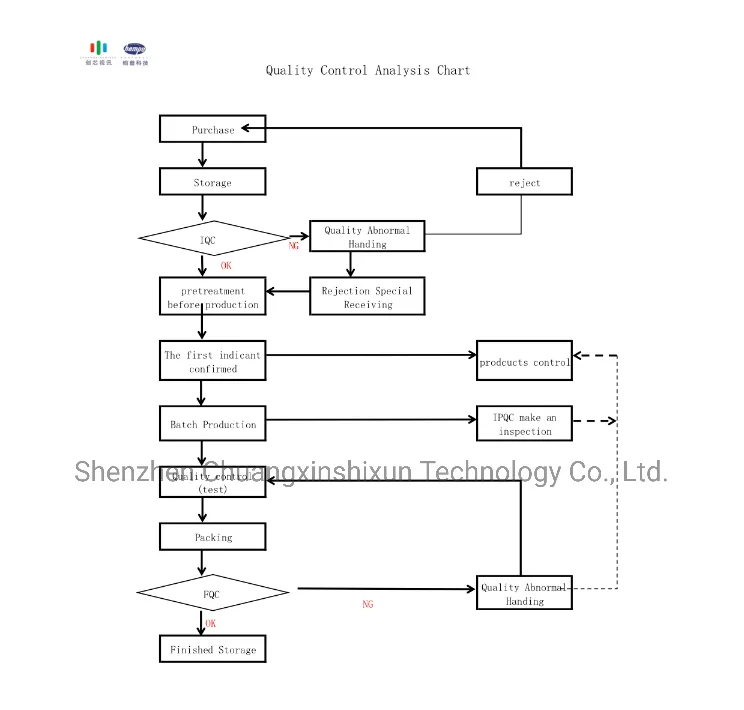

Quality Control:
