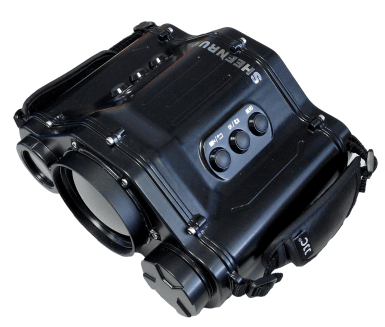

Hunting Hand Held Dual Thermal & Daylight Imaging Binoculars (PVR75)

Product Description

1 Introduction

The thermal imaging camera series adopt the fourth generation of uncooled focal plane
infrared detector, the most advanced optics and electronic system, which have super high performance and smart shape.

The product has hard and sealed shell, inside is nitrogen, can repel rains and dusts and
can work in harsh environment normally. This product can penetrate dusts, fog, rain, snow and darkness and provide clear images.

2 Specifications

Model	SHR-PVR75
Effective distance	Day light camera	Can monitor people activities at 500m distance
	Thermal Camera	Objects	1.8m×0.5m size object (such as people))	2.3m×2.3m size object (such as car))
		Detecting distance	1800m	4950m
		Recognizing distance	450m	1240m
Thermal camera	Sensor	Uncooled vox
	Pixels	324×256
	spectrum	8~14μm
	NETD	≤50mK @F1.0,300K
	Focal length	75mm
	F	F1.0
	FOV	6.1°× 4.9°
	Focus	electronic
Day light camera	Pixels	752×582
	Focal length	3.94~46mm,12x optical zoom
	FOV	4.49°~51.54°
	Focus	auto
Video code	Video format	ASF
	Picture format	JPEG
	Resolution	720×576
Display	Binocular	640 × 480 resolution
Storage	Capacity	32G
	time	About 18 hours
Interface	Power input	DC12V
	Video output	1 line PAL video output; video and pictures can be exported to computer by USB 2.0
	RS485	RS485 control
Environment indicators	Working temperature	-15ºC~+45ºC
	Storage temperature	-20ºC~+55ºC
Power	Power supply	Inside lithium battery
	Power sumption	≤8W
	Battery using time	About 3 hours
Physical indicators	Weight	1.8kg
	Size	181mm×230mm×120mm

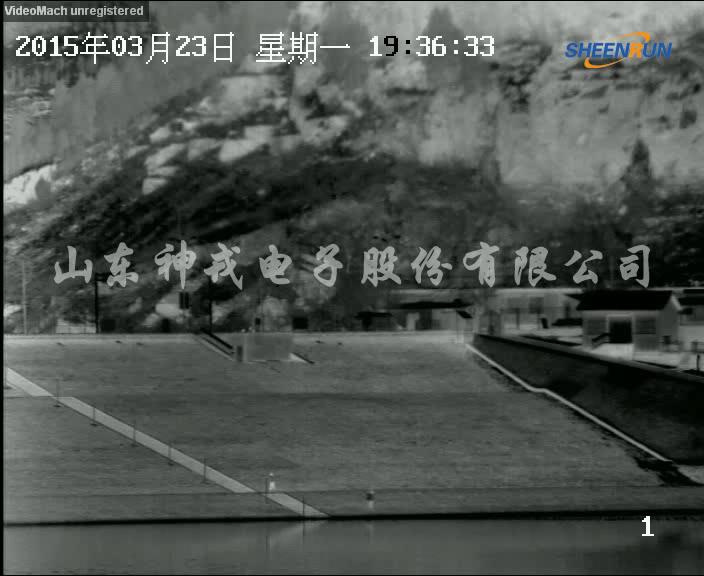

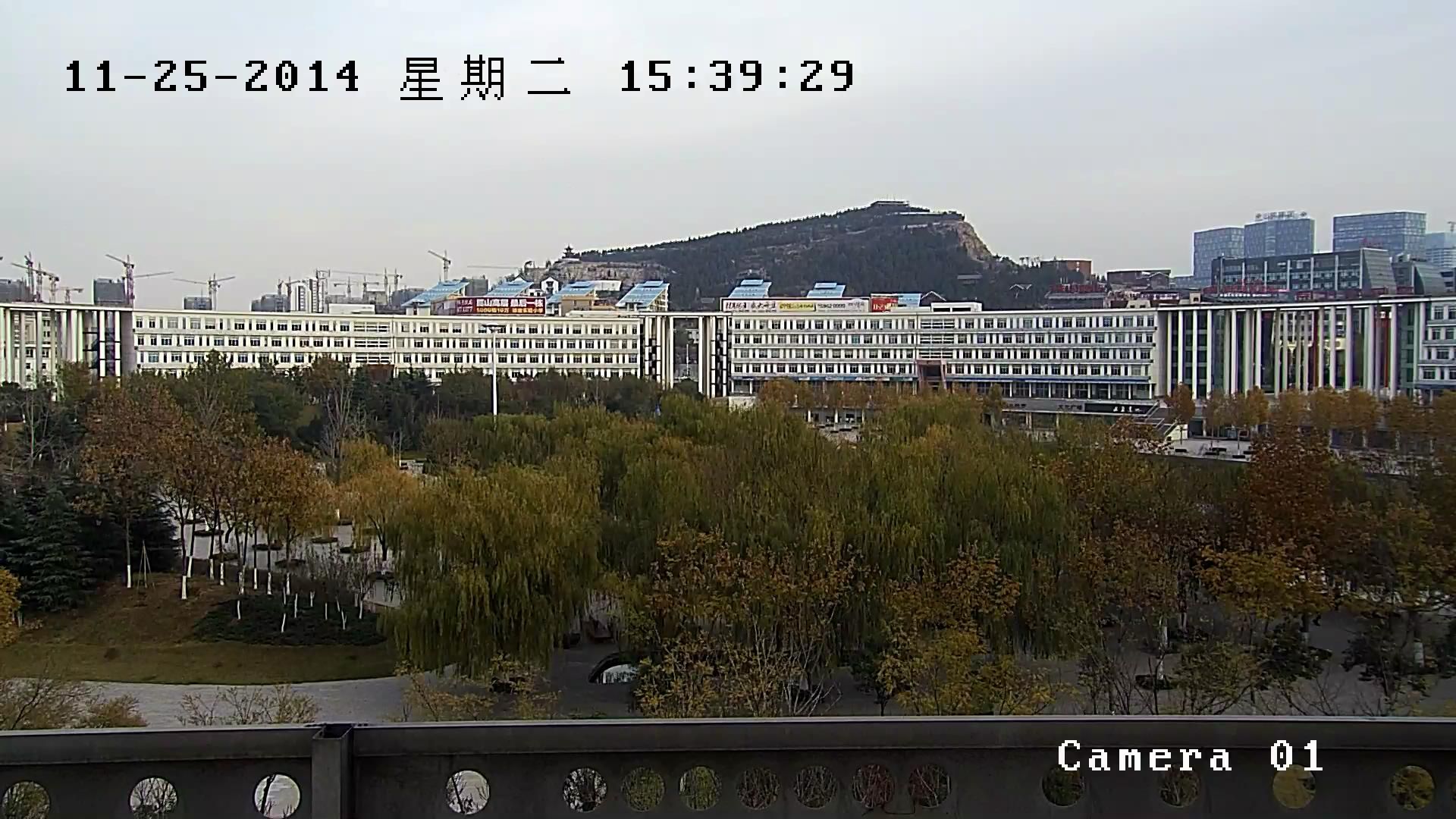

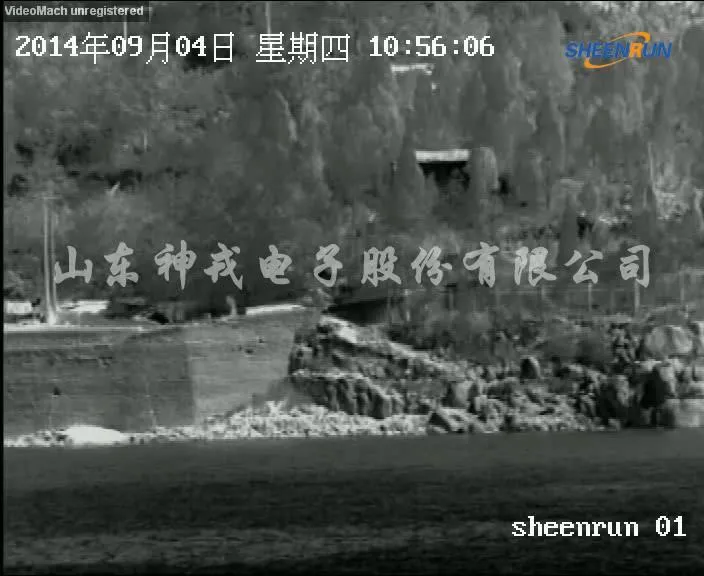

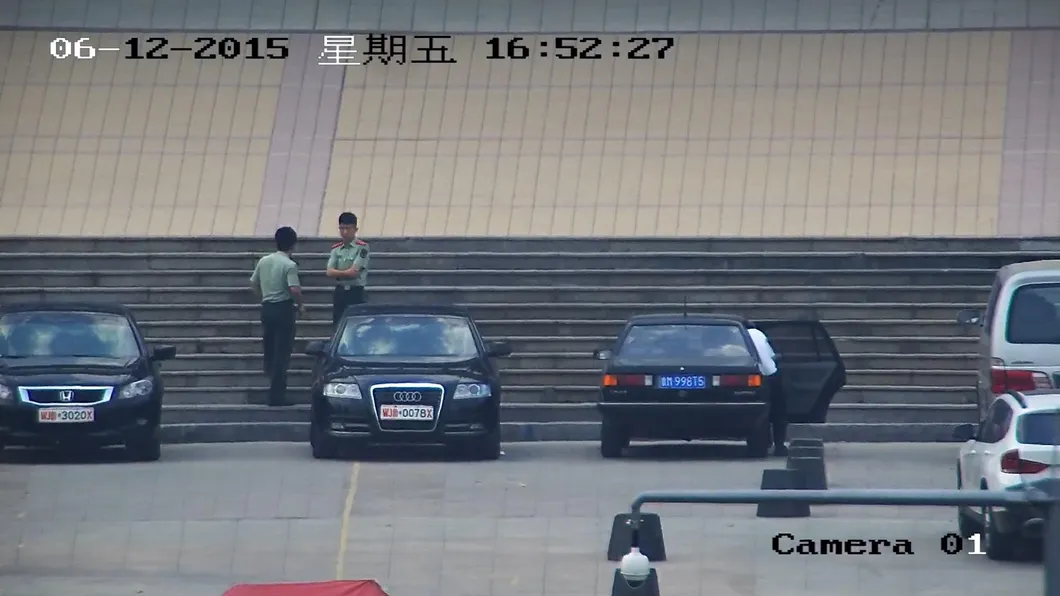

3 Effect Demo
