Infrared Range Finder Cooled Thermal Binocular
cooled sensor handheld thermal imager cameraPortable Thermal Camera Specially designed for mobile observation. With the latest the 5th generation uncooled infrared technologySurveillance range: 1km-6kmFor: City safety, oilfield safety, railway security, night gathering evidence.Unique imaging circu......
Send Inquiry
Product Description
cooled sensor handheld thermal imager camera

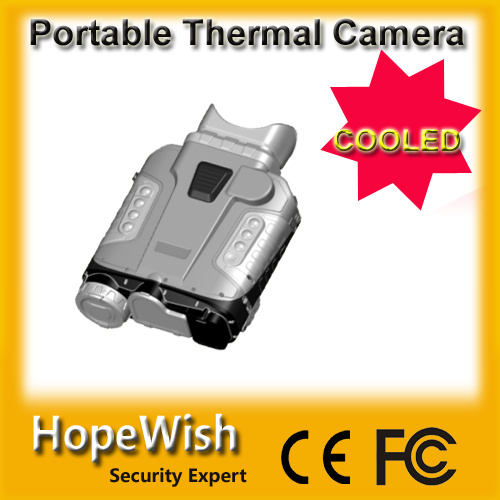

Portable Thermal Camera
Specially designed for mobile observation. With the latest the 5th generation uncooled infrared technology
Surveillance range: 1km-6km
For: City safety, oilfield safety, railway security, night gathering evidence.
Unique imaging circuit components and AS optical design
Hot-white/Hot-black
Weatherproof rate IP66, anti-rain, anti-dust
| Model | HP-FCT330 | HP-FCT630 | HP-FCT3324 | |||
| IR detector | ||||||
| Detector | Mid-wave cooled FPA, MCT | |||||
| Resolution | 320×256 | 640×512 | 320×256 | |||
| Pixel size | 30μm | 15μm | 30μm | |||
| Spectral response | 3.7μm ~4.8μm | |||||
| Lens | ||||||
| Focal length | 30mm~300mm continuous zoom, auto focus. | 60mm/240mm, bi-FOV | ||||
| F# | 4.0 | |||||
| FOV | 18.18°×14.59°~2.29°×1.83° | 9.15°×7.32°~2.29°×1.83° | ||||
| Detection | ||||||
| Human (1.8m×0.5m) | Detection: 6.5km Recognition: 2.5km | Detection: 8.6km Recognition: 4.2km | Detection: 6.5km Recognition:2.5km | |||
| Tank (2.3m×2.3m) | Detection: 9.2km Recognition: 4.1km | Detection: 13.4km Recognition: 7.2km | Detection :9.2km Recognition: 4.1km | |||
| Visible camera | ||||||
| Resolution | 640×512 | 752×582 | 800×600 | |||
| Focal length | 120mm fixed focus | 3.3mm ~120mm | 50mm | |||
| CCD | 1/4" | 1/4" | 1/4" | |||
| Image | ||||||
| Video format | Analog video: PAL(25Hz) Network video(100M) | |||||
| OLED eyepiece | 0.5 inch high-resolution OLED 800×600 | |||||
| Digital zoom | ×1, ×2, ×4 | |||||
| Image enhancement | Auto image filter, DDE, partition loads and blank-off(IR526B is equipped with micro-scanning enhancement function). | |||||
| Brightness / contrast | Auto / manual | |||||
| Color mode | Hot-white / hot-black, color . | |||||
| Storage | ||||||
| Storage | 16G SD card | |||||
| Picture storage | .JPEG format picture7000pcs | .JPEG format picture 10000pcs | ||||
| Video storage | MP4 format video 5h | AVI no loss compression video 2.5h | ||||
| GPS | ||||||
| Accuracy | ±5m | |||||
| E-compass | ||||||
| Resolution | 0.1° | |||||
| Precision | 0.5(RMS) | |||||
| LRF | ||||||
| Laser wavelength | 1.57μm, eye-safe level. | |||||
| Accuracy | ±5m | |||||
| Measuring distance | 2.3m×2.3m target, ≥6km | 5m×5m target, ≥10km | 2.3m×2.3m target, ≥4Km | |||
| Power supply | ||||||
| Input power | 24V adapter or standard lithium battery. | |||||
| Battery working time | >4h | >5h | ||||
| Interface | ||||||
| Electric interface | Power supply, serial port, USB, analog video port, network port | |||||
| Mechanical interface | 1/4 inch spider | |||||
| Physical characteristics | ||||||
| Weight | 5.2kg (4.7kg battery excluded) | 5.0kg (4.5kg battery excluded) | <3.5kg(battery included ) | |||
| Dimension (eyepiece included) | 368mm×255mm×111mm | 378mm×247mm×118mm | 360mm×236mm×118mm | |||
