China Long Range Security Camera HD Dual Lens Vox Sensor Thermal Camera

Product Description

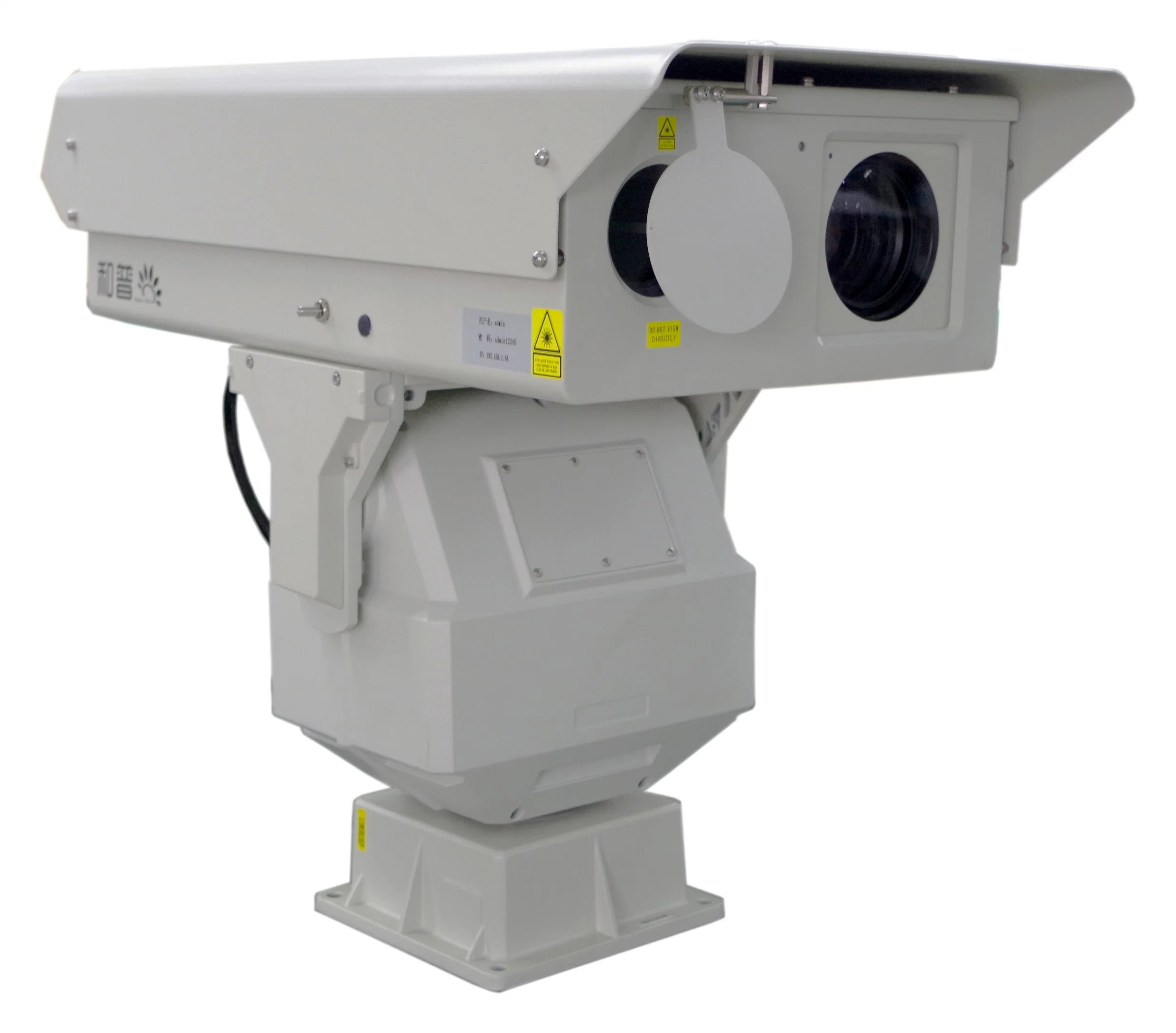

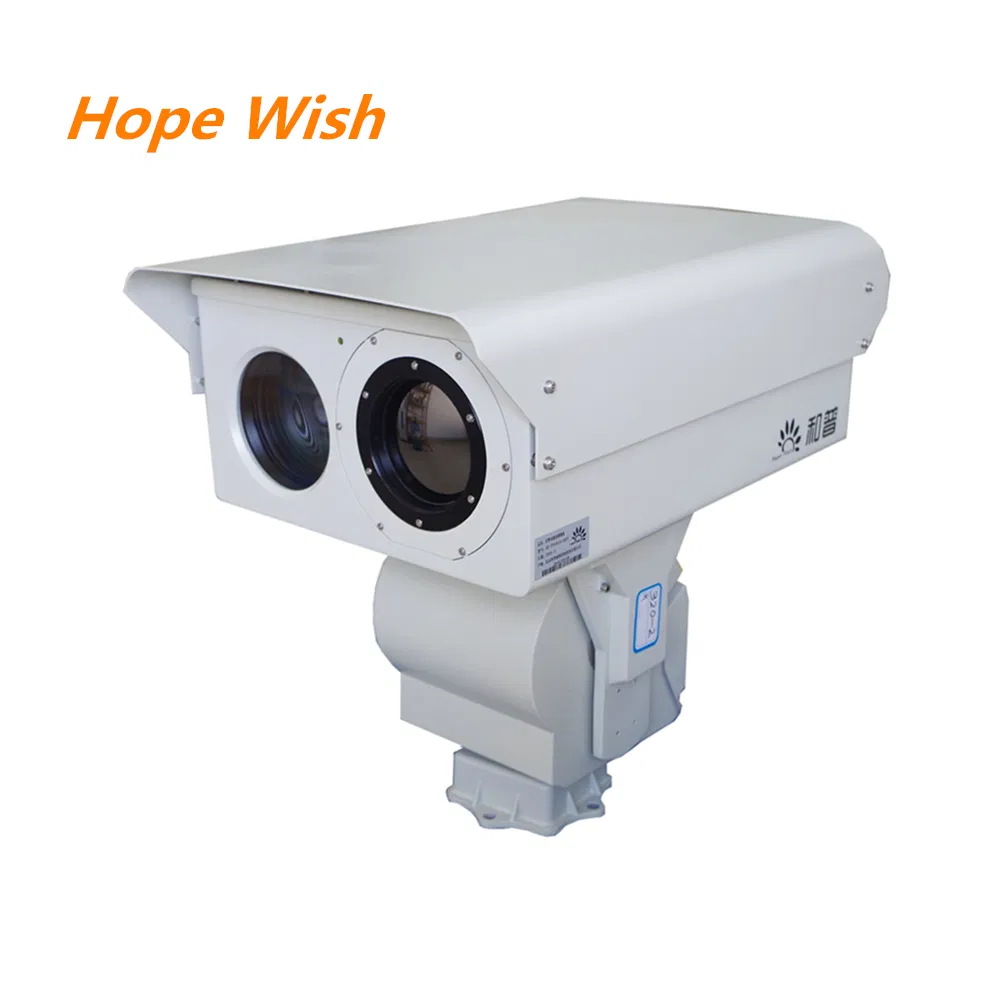

TVC Series Long Range Multi Sensor Thermal Camera is a series of camera specially designed for special purposes, the Camera adopts 2,000,000 visible camera and 336*256/640*512 uncooled thermal camera with large caliber. In combination with 360 degree PT, the camera is capable of conducting 24 hours real-time monitoring within 2km-10km.

With built-in technical grade control electronic system, the camera's functions like zooming, focusing and video switch can be easily completed. The camera is IP66 rates, which ensures camera´s normal operation under tough weather conditions

Feature

   12-320mm/15-500mm/25-750mm/20-1000mm visible camera, 2 mega pixels CCD, 2-10km detection range in the daytime.
   25-75mm/21-105mm/31-155mm/38- thermal camera, 336*256/640*512 resolution, 2-10km detection range at night.
   50mk NETD produces crisp thermal image under all weather conditions.
   Fog penetration (optional), optical filtering and DSP image processing.
   PT with 30kg/50kg load duty and 360 degree rotation.
   IP66 ingress protection ensures camera´s proper functioning under tough weather conditions.

Application

City safety, oilfield safety, railway security, night gathering evidence.

Long Range Security Camera HD Dual Lens Vox Sensor Thermal Camera

Specification

Model	TVC4307A-2132-IP	TVC4516A-1930-IP	TVC4511A-2050-IP	TVC4516A-2075-IP
Detection	Vehicle: 6300m	Vehicle: 13000m	Vehicle: 8600m	Vehicle: 13000m
	Human: 2500m	Human: 4800m	Human: 3400m	Human: 4800m
Identification	Vehicle:1800m	Vehicle: 3400m	Vehicle: 2400m	Vehicle: 3400m
	Human: 700m	Human: 1300m	Human: 900m	Human: 1300m
Thermal sensor	VOx uncooled detector, 336256(640512 optional); 7.5um-14um spectral response, 50mk NETD, 2X digital zoom; Image processing; AGC; 10 pseudo color; SDE image enhancement;
Thermal lens	25mm~75mm	31mm~155mm	21mm~105mm	31mm~155mm
	3CAM precision mechanizing(auto focus optional)
FOV	13°×10°~4.3°×3.2°	11.2°×8.5°~2.2°×1.7°	18°×13.5°~3.4°×2.7°	11.2°×8.5°~2.2°×1.7°
Visible camera	1/2.8'' CMOS, 2.1 mega pixels, 1920*1080, auto B/W to color at 0.001lux; ICR optical filter; H.264
Visible Lens	12~320mm, mega pixels, motorized zoom and focus, auto iris	4.3mm~129mm, mega pixels, auto focus	15~528mm,mega pixels, motorized zoom and focus, auto iris	20-750mm, megapixels, motorized zoom and focus, auto iris
Housing	Aluminum alloy housing, double window, water-tight, IP66 rated
Load duty	30kg		50kg
PT	Pan: 360°continuous; tilt:+40°~-45°		Pan: 360° continuous; Tilt: +40°~-45°
Rotation speed	Pan:0.01~30°/S; tilt: 0.01~15°/S		Pan: 0.01~30°/S; tilt: 0.01~15°/S
Extended function	Real time display of orientation and angle; zero correction; angle back sending; 80 presets, patrol and scanning
Video	H.264, 2 video output
Interface	Intelligent IP box, 1RJ45 for all video outputs and control; 1AC24V/DC24V adapter
	1*AC24V power
Protocol	Pelco-D/P; 2400/4800/9600/19200(selectable baud rates)
Anti-lighting	4000V(power supply); 2000V(communication)
Power supply	AC24V/DC24V±10%,50Hz,5A
Ingress Protection	IP66
Working temp.	-25ºC~+55ºC(-40ºC optional)

* The detection distance is related to the object and environment etc. Please contact with us for further information.

Our company

Hope Wish Photoelectronics Co., Ltd. locates in the Hi-tech zone of Jinan Shandong province, which specilize in developing and manufacturing long range thermal imaging camera and laser camera for more than 13 years.

We try to provide our customers with the best products and service by giving top priority to our quality. Every products pass strict inspection process which gives customers multi guarantee.

We believe the quality of products is the foundation of the development of a company, so we pay every attention to the qulity of our products. And try our best to offer the comprehensive pre-sale consulting and after-sale service.
Long Range Security Camera HD Dual Lens Vox Sensor Thermal Camera

FAQ

Q1: Are you manufacturer or not?
A1: Yes, we are MANUFACTURER which have devoted developing and manufacturing thermal imaging camera and IR laser camera for more than 13 years, with our independent R&D group, factories, Department of Quality Assurance and After-sale service team ect. We are confident in providing you the high performance product with reasonable price and satisfied service.

Q2: Do you accept OEM/ODM?
A2: we accept OEM and ODM. If you have OEM or ODM plans , highly welcome to negotiate with our sales person, we can provide you guaranteed products, and pretty competitive prices.

Q3: Do you provide demo camera?
A3: Yes, we can provide you with demo cameras only if you pay some deposit. If you are not satisfied with the demo camera and want to send it back, we will refund your deposit.

Q4. What is your terms of packing?
A: Generally, we pack our products in carton or wooden boxes. If you have specific requirement for the packing,
we can pack the goods according to your requirement.

Q5. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.

Q6. How about your delivery time?
A: Generally, it will take 7 to 30 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
