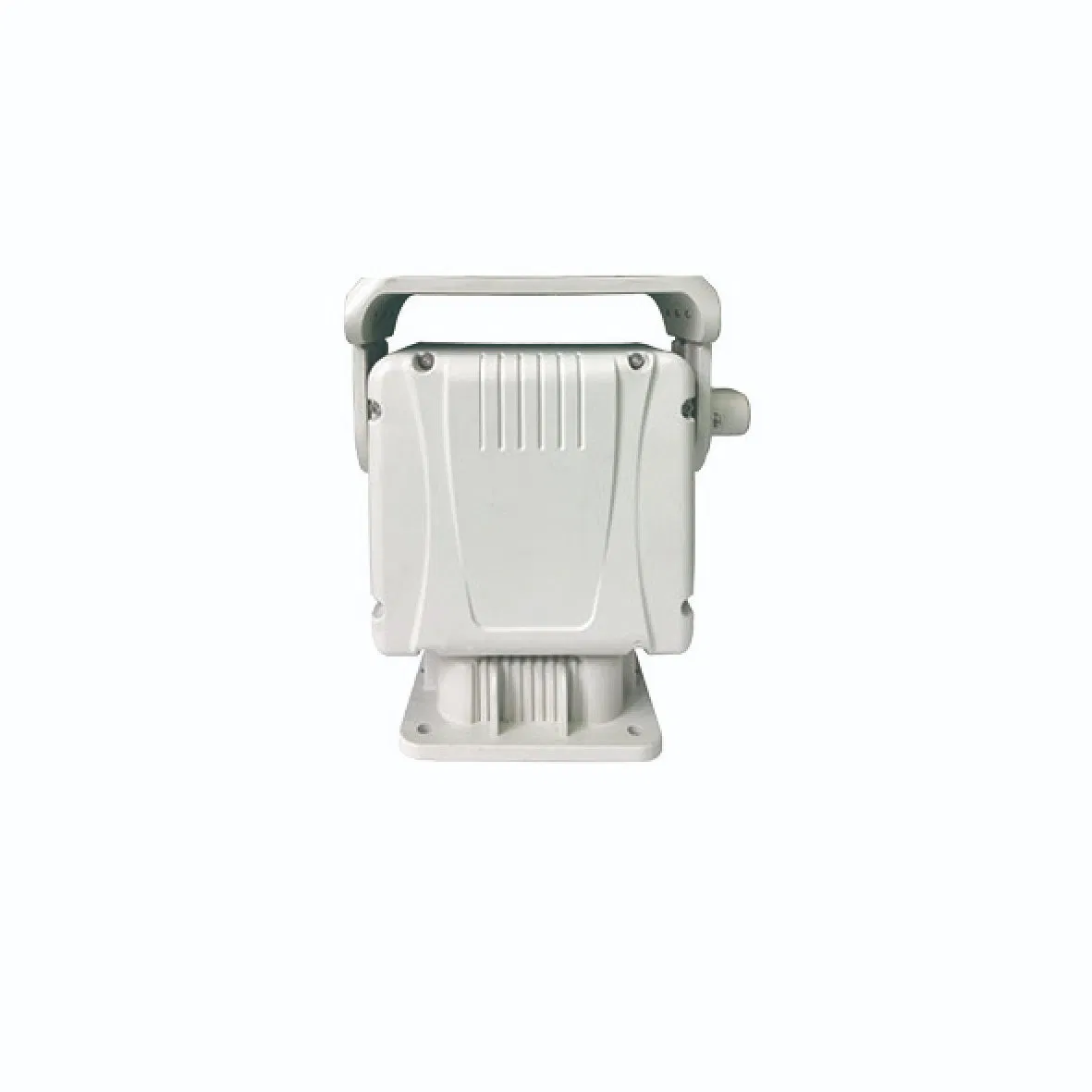

OEM ODM IP66 Heavy-Load Aluminum Alloy Pantilt/Rotation Pan Tilt
Features:Max Load:5kg/10kgSupport kinds of lens preset with self-adaptive functionHigh resetting accuracy, up to ±0.1ºAdopt die-cast aluminum alloy materialAdopt high-strength worm-gear driven, self-locked when power is offPan:0º~360º continuousProtection Class:......
Send Inquiry
Product Description
- Max Load:5kg/10kg
- Support kinds of lens preset with self-adaptive function
- High resetting accuracy, up to ±0.1º
- Adopt die-cast aluminum alloy material
- Adopt high-strength worm-gear driven, self-locked when power is off
- Pan:0º~360º continuous
- Protection Class: IP66
- OSD menu,Network(optional)
- Optional function: returning data of pan tilt position, focal length, focus etc.
Rotating Speed | Pan:0.01º~30º/s,Tilt:0.01º~15º/s |
Rotation Angle | Pan:0º~360º continuous, Tilt: +60º~ -60º |
Number of Presets | 200 |
Preset Positioning Accuracy | ±0.1º |
Optional function | Pan tilt position data ,focal length etc. |
Auxiliary Switch | 2 groups |
Lens Preset | Support,with self-adaptive function |
Auto Cruising | 8 tracks(each with 10 presets) |
Homing time | It can be set up within the scope of 1~60 min |
Auto Scan | 1 path |
Protocol | Pelco-D/P |
Baud Rate | 2400/4800/9600/19200bps |
Interface | RS485(RS422 optional) |
Input Voltage | AC24V±20%,50/60HZ;DC28V±20% |
Power Consumption | ≤50W |
Operation Temperature | temp:-25ºC~+65ºC ,humidity:90%±3% RH; without condensation(-40ºC~+65ºC) |
Storage Temperature | -40ºC~+70ºC |
Max Load | 5 kg/10kg |
Load Mode | top-mounted |
Driven way | Worm-gear |
Protection Class | IP66 |
Weight | 5.5 kg |

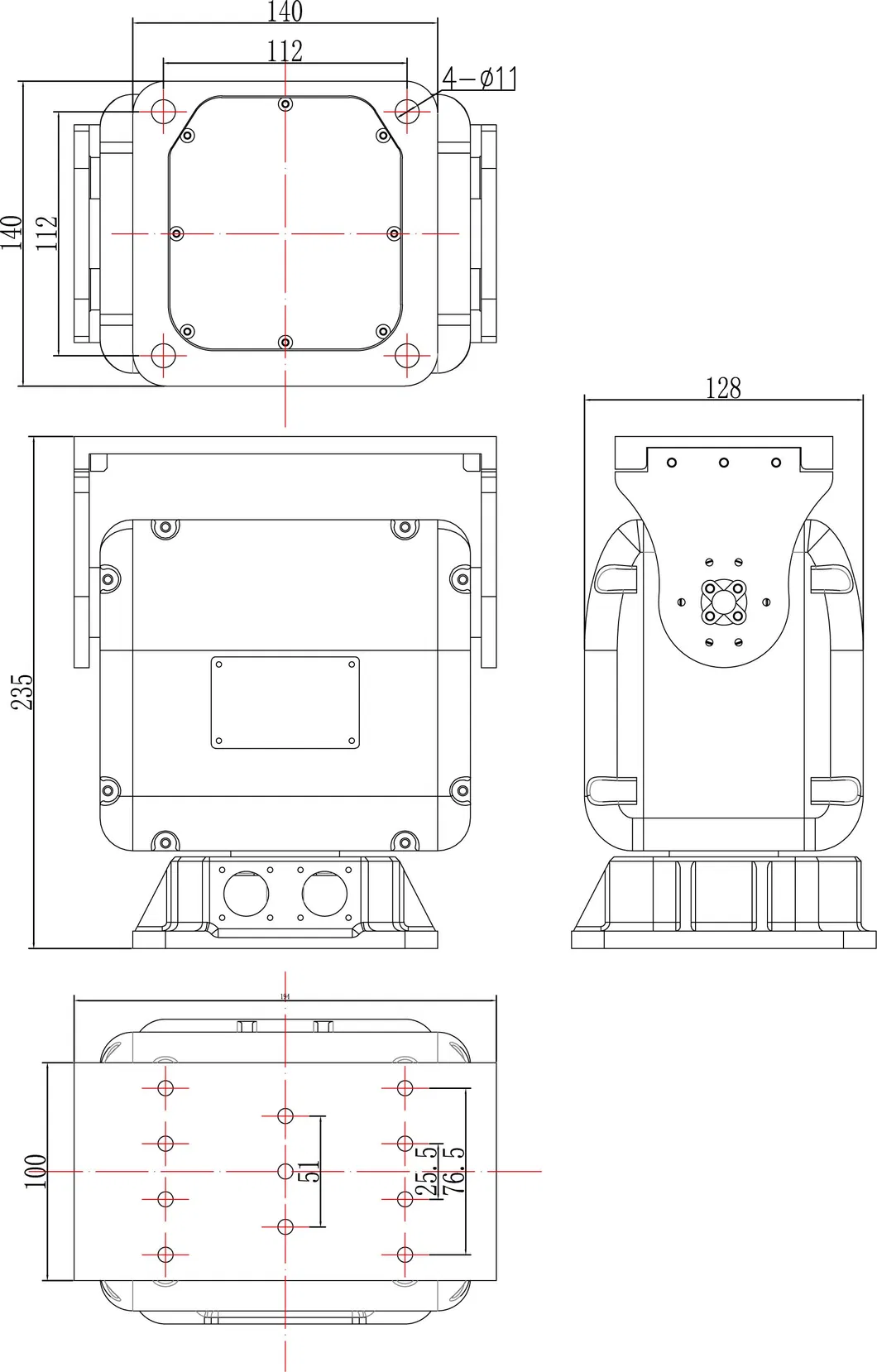

Dimensions | 265mm*180mm*315mm(L*W*H) |
