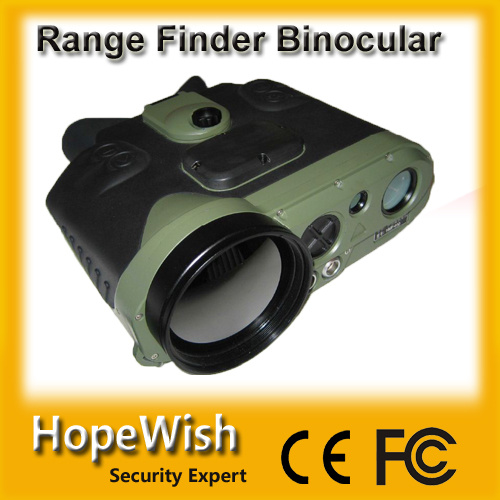

Portable IR Range Finder Thermal Binoculars
Feature 1. 5th generation uncooled thermal sensor, decrease the size, weight and cost. 2. Aluminum alloy housing, weatherproof rate IP65., anti-rain, anti-dust. 3. NETD up to 50mk, higher sensitivity, little effect by rain, fog, and snow, obtain more delicate picture. 4. Unique AS opti......
Send Inquiry
Product Description
Feature
1. 5th generation uncooled thermal sensor, decrease the size, weight and cost.
2. Aluminum alloy housing, weatherproof rate IP65., anti-rain, anti-dust.
3. NETD up to 50mk, higher sensitivity, little effect by rain, fog, and snow,
obtain more delicate picture.
4. Unique AS optical design and high precision optical mechanical design,
excellent image quality.
5. Excellent non-uniform image correct technology, good image and dynamic range,
without TEC thermostatic control.
6. SDE image detail enhancement technology, no noise, B/W and B/W optical.
Applications
Safe city, oilfield, railway, harbor, airport, evidence gathering, hunting, expressway etc.
Technical Specifications
Model | MTC4105R | MTC4107R | MTC4107RG | ||
Detection | Vehicle 3800m Human 1300m | Vehicle 5800m Human 2000m | |||
Identification | Vehicle 970m Human 400m | Vehicle 1460m Human 600m | |||
Sensor | 5th generation UFPA | ||||
Resolution | 336*256 | ||||
Wave length | 7.5~14μm | ||||
Digital zoom | 2x ; 4 x | ||||
Color mode | Hot-white/Hot-black | ||||
Lens | 50mm, F1.0 | 75mm, F1.0 | |||
FOV | 10°*8° | 5.4°*4.1° | |||
Eyepiece display | 640*480 , binocular display with eyeshade, high hidden | 800*600 ,OLED binocular display with eyeshade, high hidden | |||
Storage | 4G memory card, 1000photos in JPEG format, video for 3.5 hours in AVI format, USB export | ||||
ECO mode | Auto | ||||
Operation | Four buttons, two at each side | ||||
Battery | Operation voltage DC: +2.6V~+5.5V; Power consumption<2.8W (video time); 2xlithium battery,25500,3000 mAh ; Continuous working time : > 5 hours at no record, >3.5 hours at record. Using life > 500 times , charge/ discharge cycles | ||||
Starting time | <3s | ||||
Interface | Video output | ||||
IP Rate | IP66 | ||||
Humidity | 5%~95%(non-condensing) | ||||
Storage temperature | -40ºC~+70ºC | ||||
Operation temp. | -20ºC~+60ºC | -35ºC~+60ºC | |||
Weight | <1.5kg (Included battery) | ||||

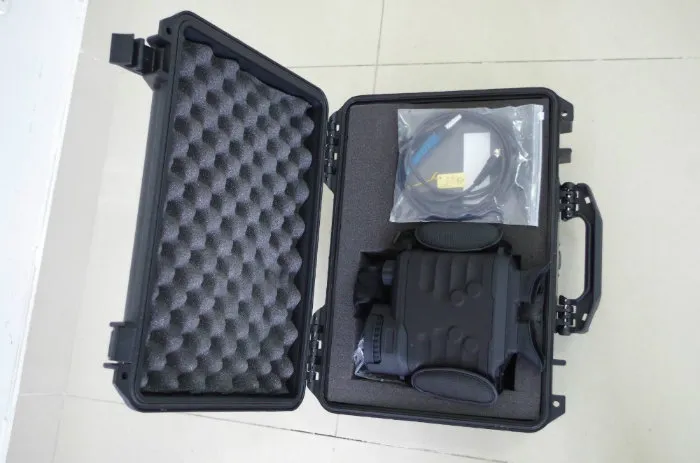

Accessories | Video cable, lens cap, rubber covert, charger, lithium battery, suitcase | ||||
