Portable Iwa Thermal Imaging Binoculars with GPS and Laser Range Finder From CCTV Camera Supply

Product Description

Features:
• Passive infrared imaging technology
• Domestically developed detector with high sensitivity (640x480 / 384×288 17μm)
• New design for exterior, button and eyepiece, more comfortable and convenient to operate
• HD display screee with HD resolution 1280 x960
• Live transmission through WI-FI, APP real-time photographing, recording, motion alarm, thermal camera control and other operations on smartphone
• Built-in distance estimation function
• Built-in reticle and picture-in-picture functon, more easy to observe and aim
• Support APP wireless to upgrade to thermal imaging host program
• The focal length of the athermal focus lens is not affected by the high and low temperature environment
• Outdoor IP66 protection level

Specification:

Model No.	BA-TM06-35
Detector type	Uncooled FPA Detector
Array size/format	384×288
FOV	14°×10.5°
Focal Length	35mm
NETD	80mK@30ºC
Frame rate	50Hz
Lens focus	Fixed
Electric zoom	2X/3X/4X
Special range	8-14um
Image Transmission	Live transmission through WIFI, APP real-time browsing, recording, photograping ,playback and other operations on Smartphone
Crosshair	Yes
Hot spot tracking	Yes
Laser Indicate	Yes
Picture-in-picture	Yes
Ranging	Yes
Display	Color LCD 1280 x 960
Image Polarity	Black Hot, White Hot, Red Hot
Diopter adjustment	Yes
Battery Type	Li-on, rechargeable
Battery Operation Time	5 Hours continuous operation
Charge Type	USB Charing and power bank suppor
External DC input	DC5V/2A (Micro USB)
Operation Temperature	.-20ºC~ +50ºC
Storage Temperature	.-40ºC~ +60ºC
Encapsulation	IP66
Drop Resistance	1M
Power	Yes
Video Output	PAL
USB	For external power supply
Weight	< 0.5Kg
Diamension	< 190 x70 x70mm

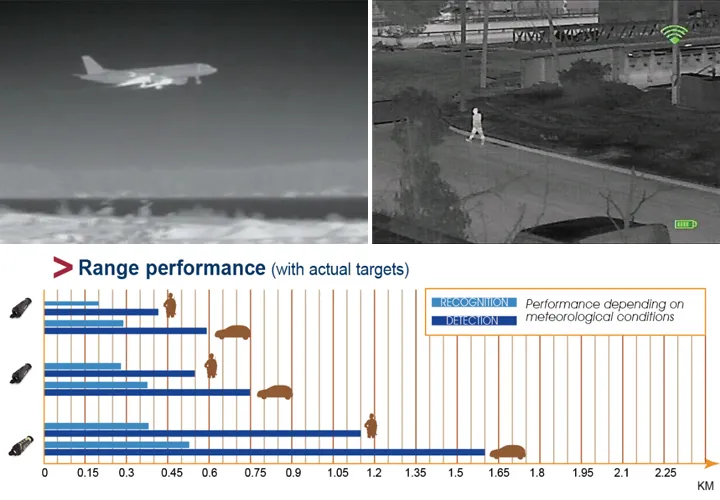

Human	1100m
Vehicle	1500m
human	500m
Vehicle	750m
