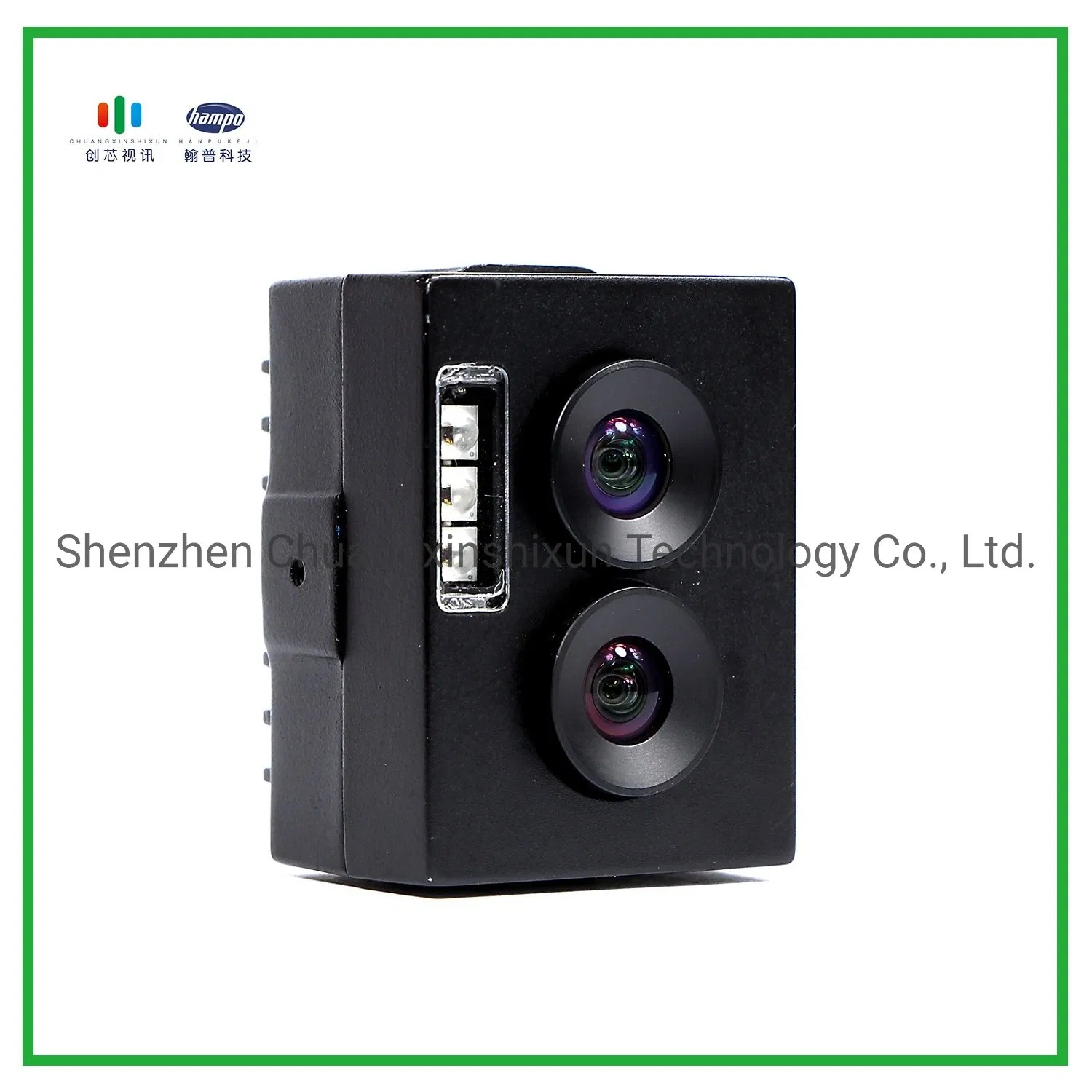

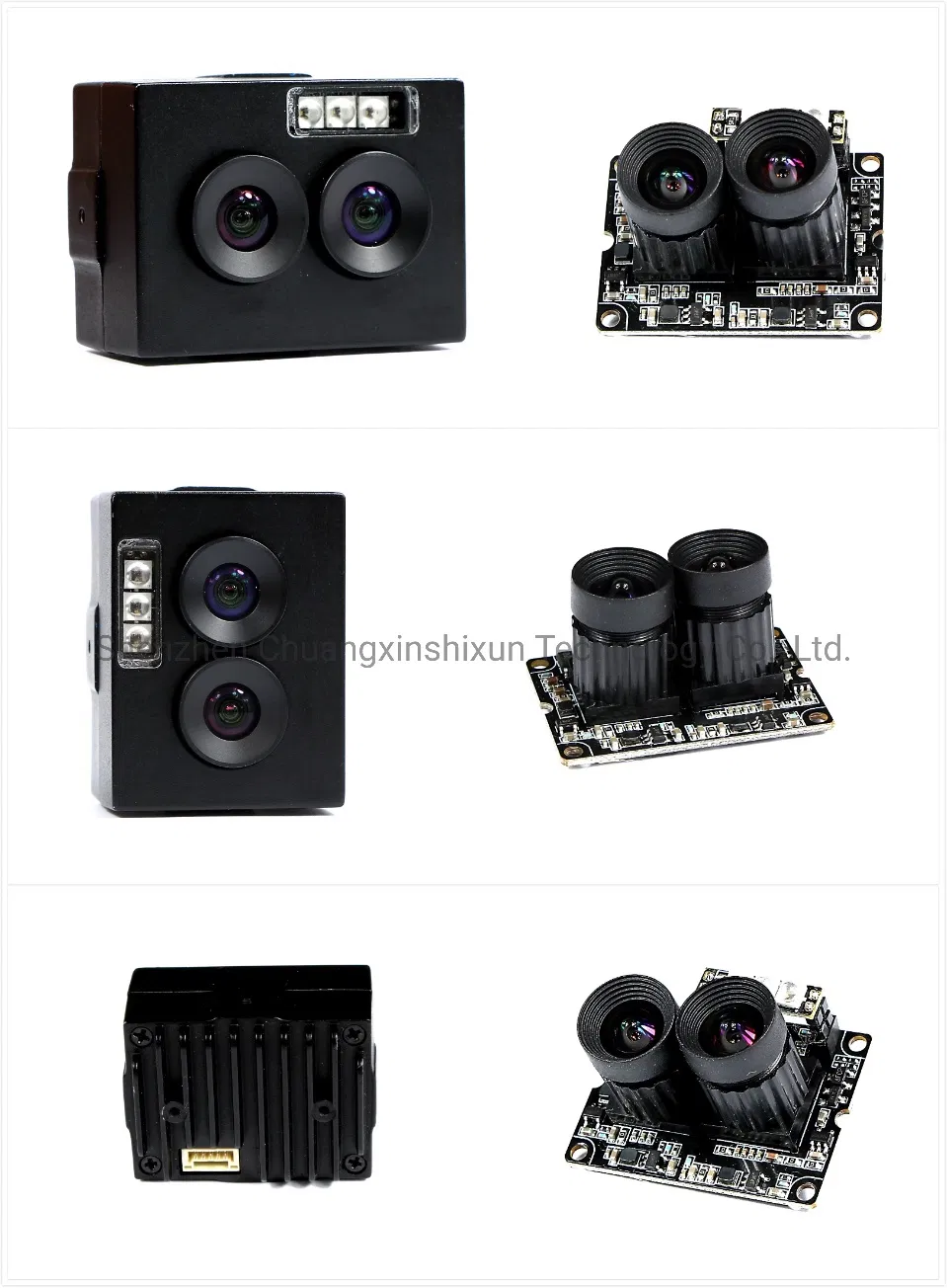

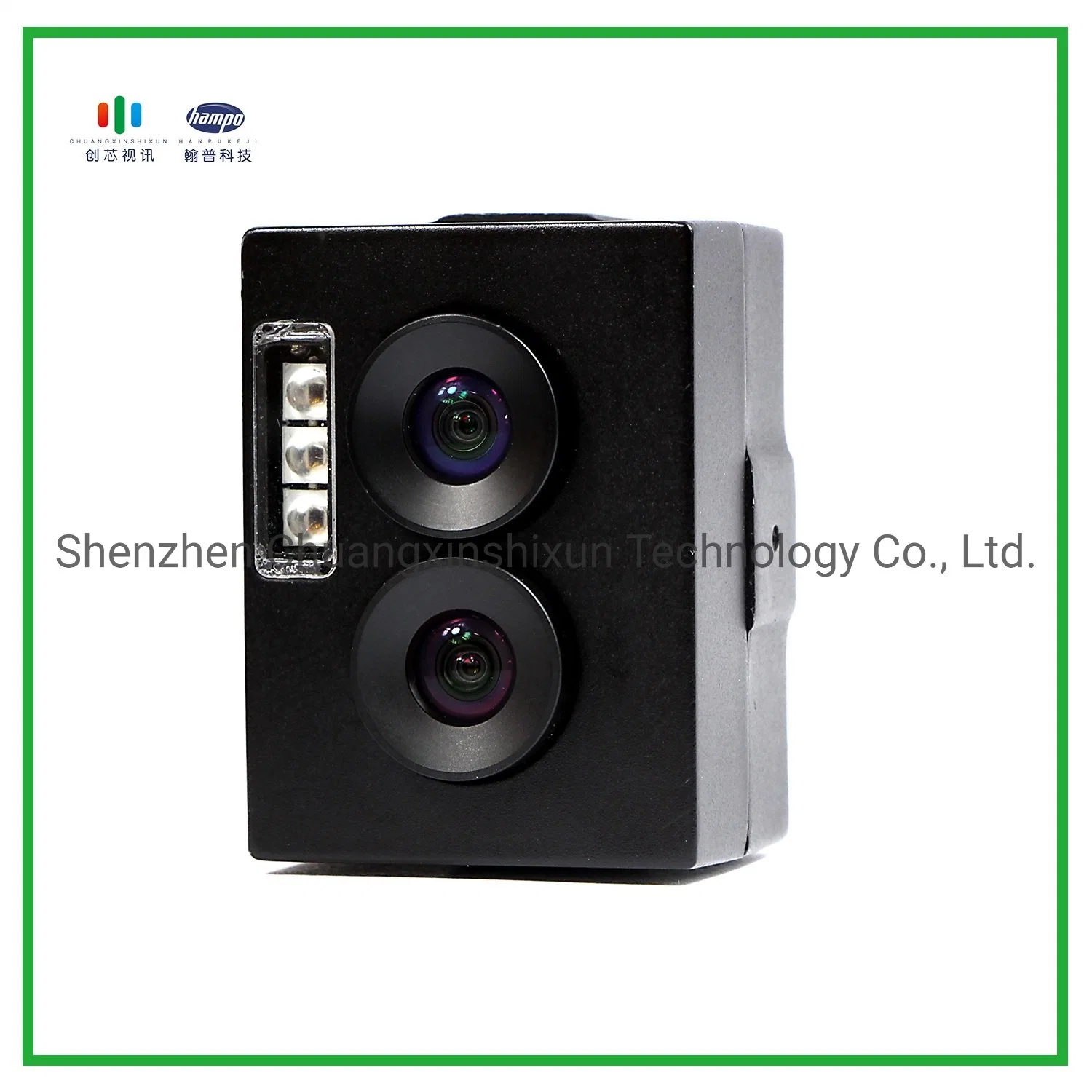

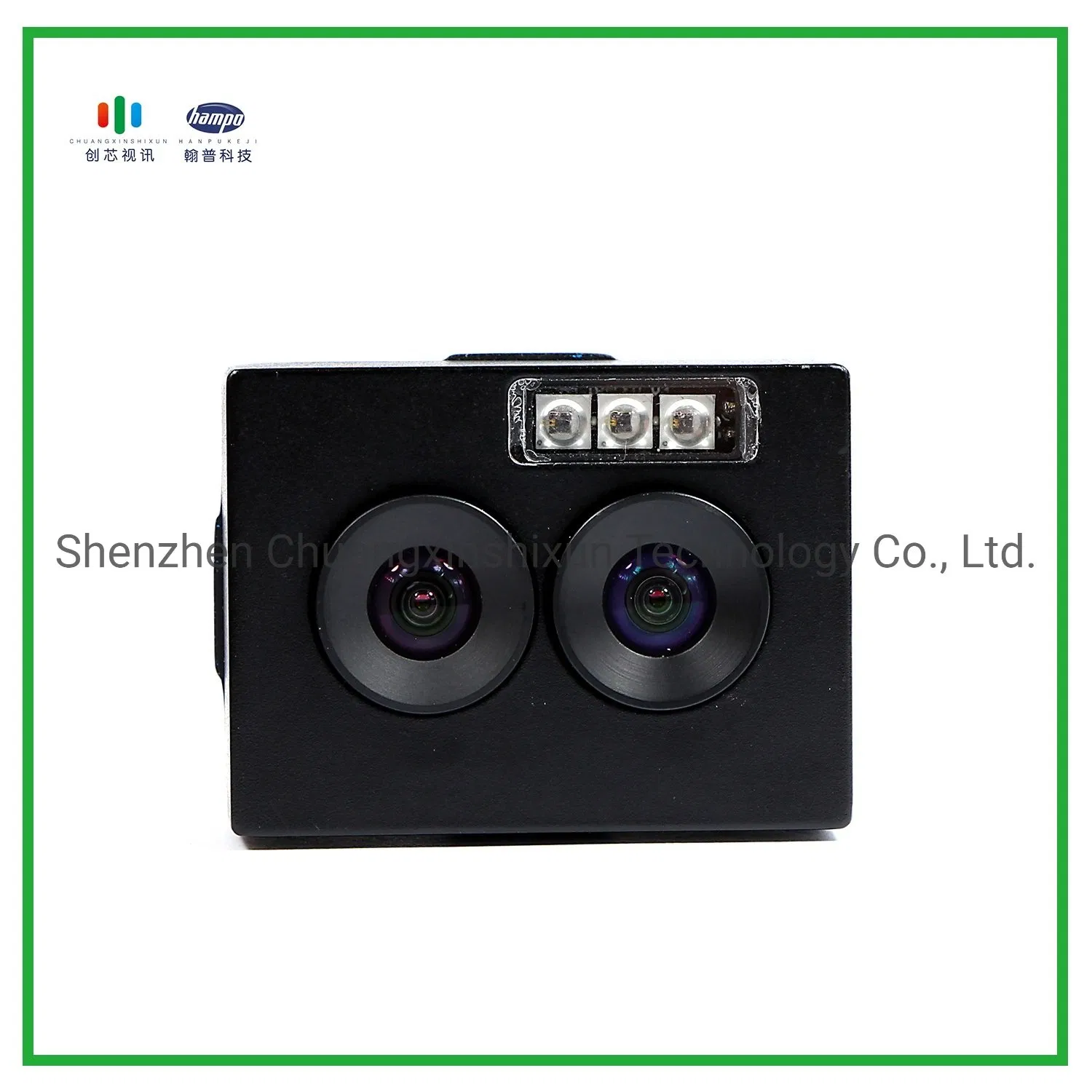

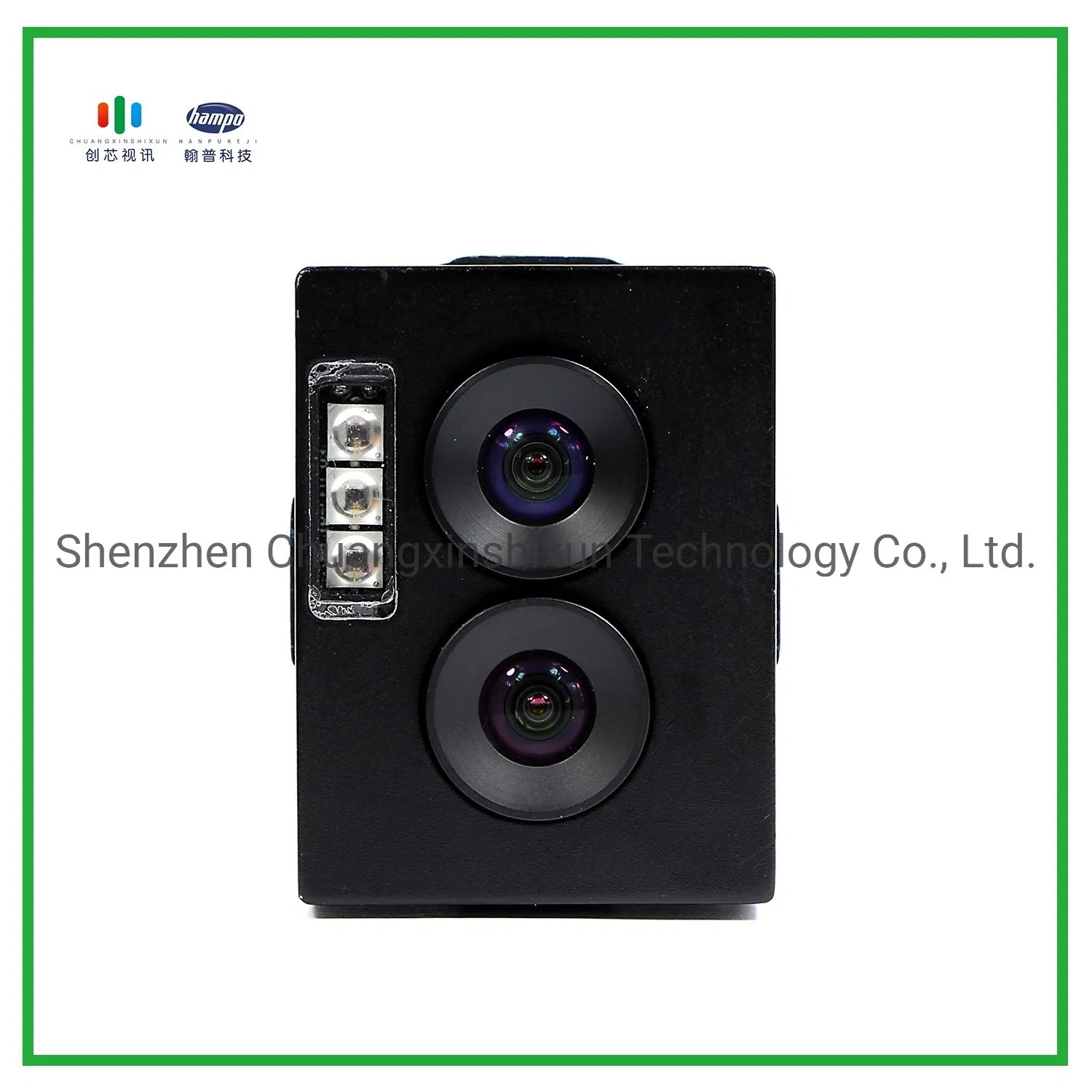

RGB with IR Dual Lens USB Camera Module 3MP+1.3MP

Product Description

RGB with IR Dual Lens USB Camera Module 3MP+1.3MP:

1. Double 1/3 inch camera module

2. 3Mega+1.3Mega Cmos USB Camera Module

3. USB webcam with UVC, support Windows, Linux, Mac with UVC and Android system.

4. USB camera module with 88 degree

5. 38x28mm mini micro USB board camera

Specification:

Items	Parameters
Type	SENSOR		SENSOR
SENSOR	AR0331		AR0130
Maximum Effective	2480*1536		1280*960
Lens Size	1/3"		1/3"
Pixels Size	2*2μm		2*2μm
Image Area	/		/
Output Parameters	Data Format	Resolution		Frame Rate
	YUY2/MJPG/H.264	<=1080&720		30fps
Input Clock Frequency	/		/
Focusing	Fixed focus		Fixed focus
MAX S/N Ratio	44DB		39DB
Dynamic Range	82DB		100DB
Dark Current	/		/
Interface Type	USB2.0		USB2.0
Adjustable Parameter	Saturation,Contrast, Acutance,Tone, Clarity, Gamma, Gain, White balance,Exposure
Lens	FOV :D=88°
	Sensor: 1/2.7"
	Optical Length :17.6MM
	Lens Construction:2G3P+IR
	Mount :M12*P0.5
	Manufactor: /
	Model: 6192
IR	850 60°
Power	USB BUS POWER
Voltage	DC 5V
Electric Current	500mA
Main Chip	DSP/SENSOR/FLASH/HUB
AEC	support
AEB	support
AGC	support
Working Current	MAX 500mA
PCBA Size	25*58mm
Storage Temperature	-20ºC to +70ºC
Working Temperature	0ºC to 55ºC
Other	Dual SENSOR: black&white+color
System Compatibility	1,WinXP/WIN7/WIN8/WIN10/Linux/Android/OS X
