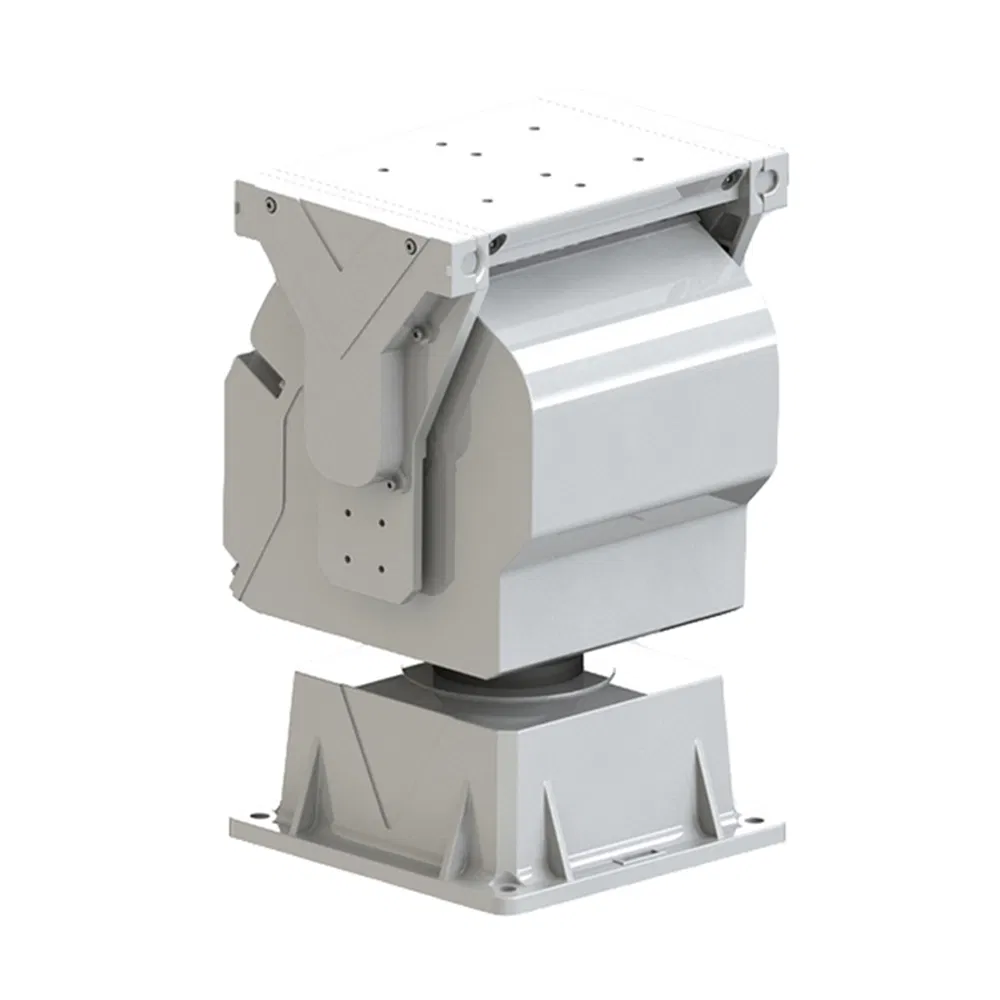

China Soar-PT520 Outdoor Aluminum Alloy Waterproof 15kg Payload Medium Duty Variable Speed Pan Tilt

Product Description

1. Specifications

Model: SOAR-PT520
Max. load	15kg
Load Mode	Top load
Driving	Worm and gear driving
Pan Rotation Angle	360° continuous
Tilt Rotation Angle	-75°~+40°
Pan Speed	0.1°/s~60°/s
Tilt Speed	0.1°/s~30°/s
Preset Position	200
Presetting Precision	±0.1°
Lens Preset	Support, adaptive to variety of lenses
Lens control speed	Zoom,focus speed is continuously adjustable
Speed Self-adaption	Support
Auto Scan	Support
Auto Cruise	Support
Keep Watch	Support
Power Failure Memory	Support
Communication Interface R	RS485
Protocol	Pelco D
Baud Rate	2400/4800/9600/19200 bps optional
Angle query return	RS485, support angle return by query command / (Optional RS422, support angle real-time return)
System
Input Voltage	AC24V±15% 50/60HZ ; DC24V±10%
Consumption Power	≤90W
Interface	10/100M Ethernet * 1; AC24V /DC24V * 1 ; Optional: RS485 / RS422
Working Temperature	-35°C~+65°C
Humidity	<90%RH
Anti-lighting	Power : 4000V (line to ground 4000 V, line to line 2000V) , Video signal : 2000V (line to ground 2000 V, line to line 1000V)
Salt fog resistance	PH 6.5 ~7.2, continuous spraying 48 hours
Waterproof	IP66
Materia	Aluminum alloy
Weight	13kg

2.Application field

3.Packing & Shipping

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

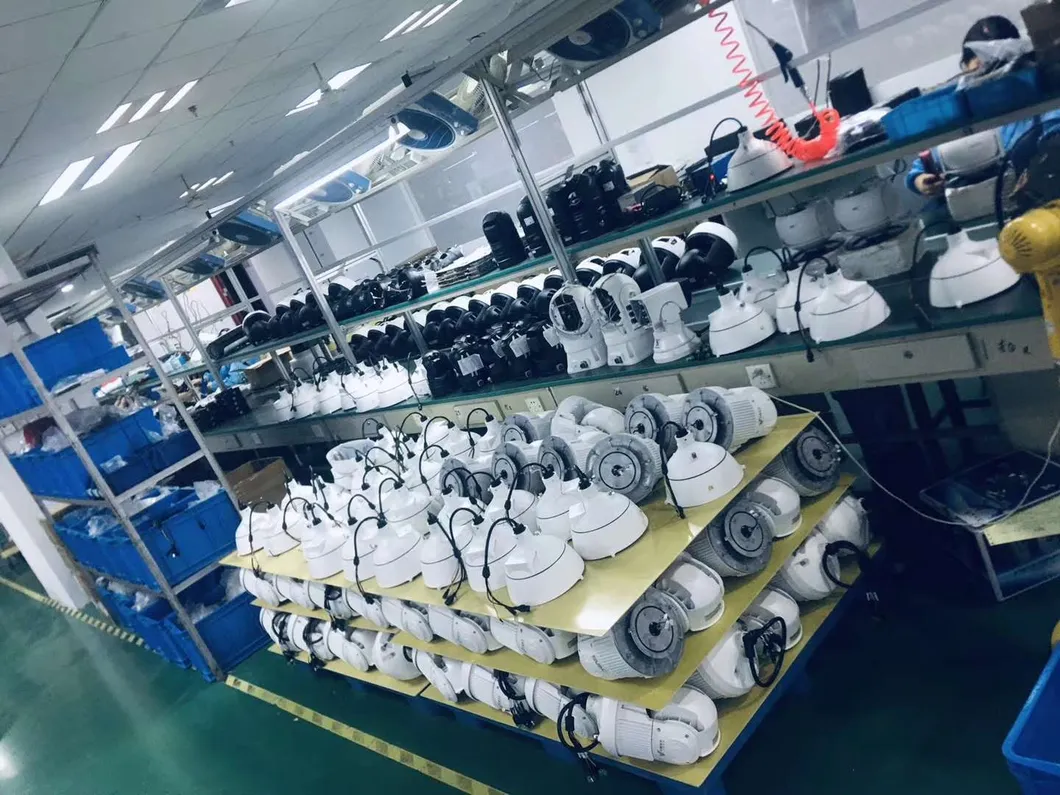

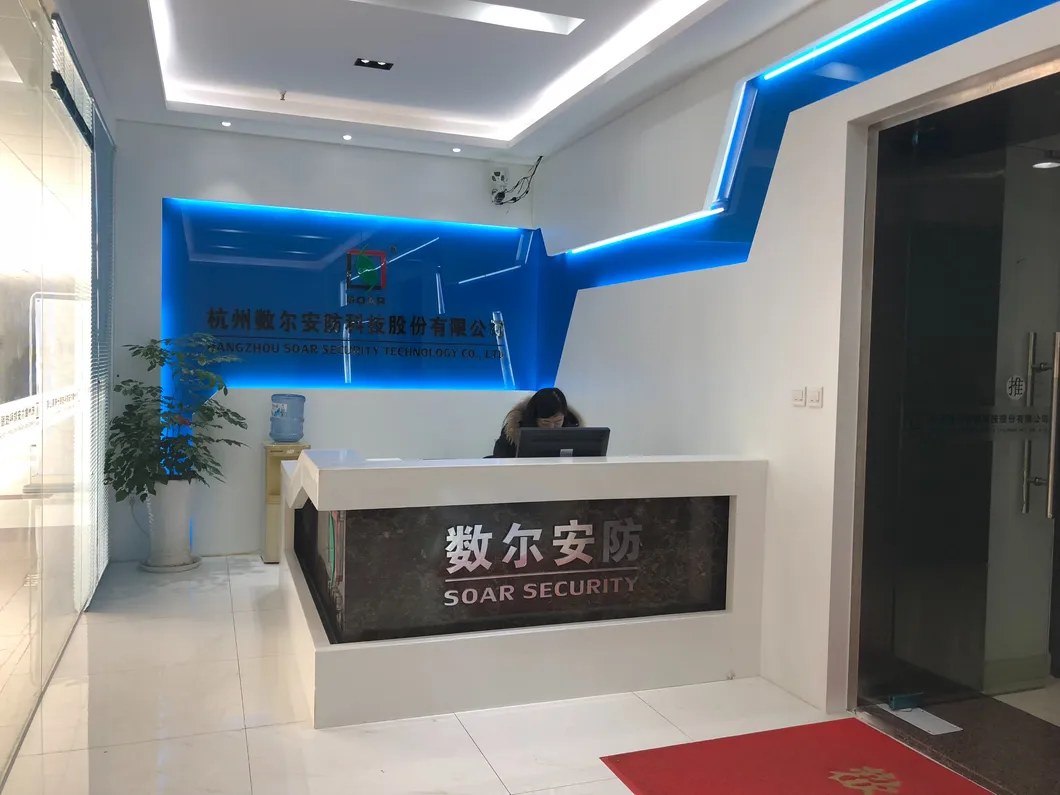

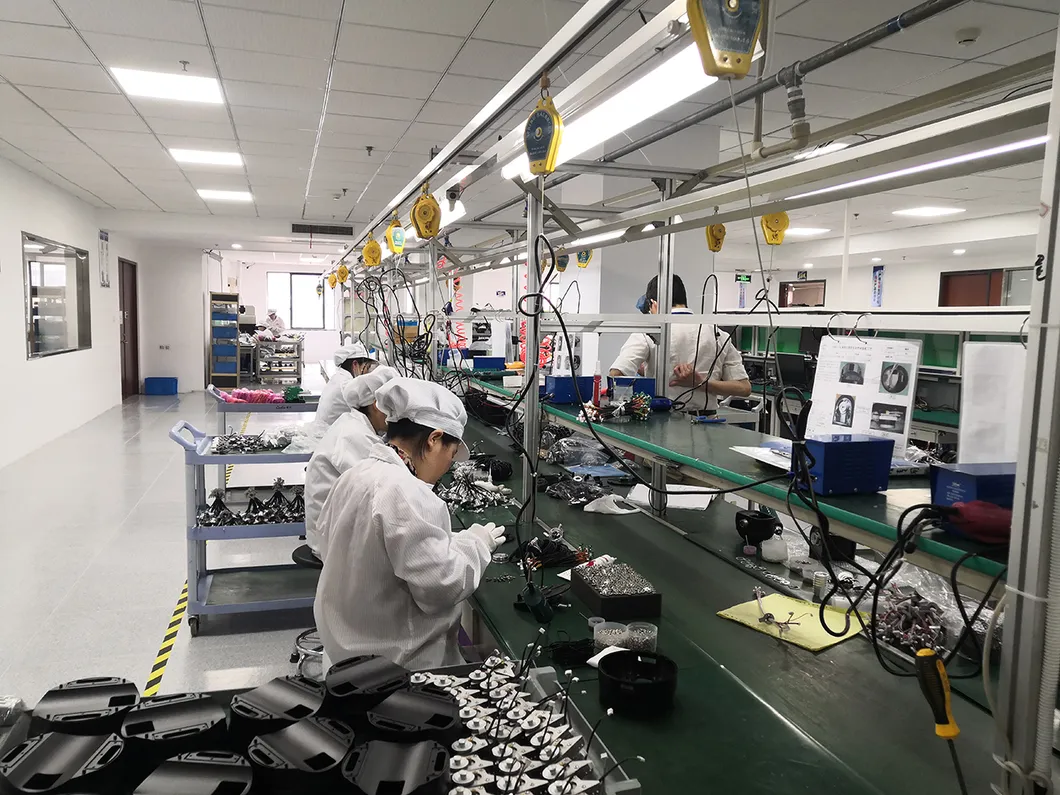

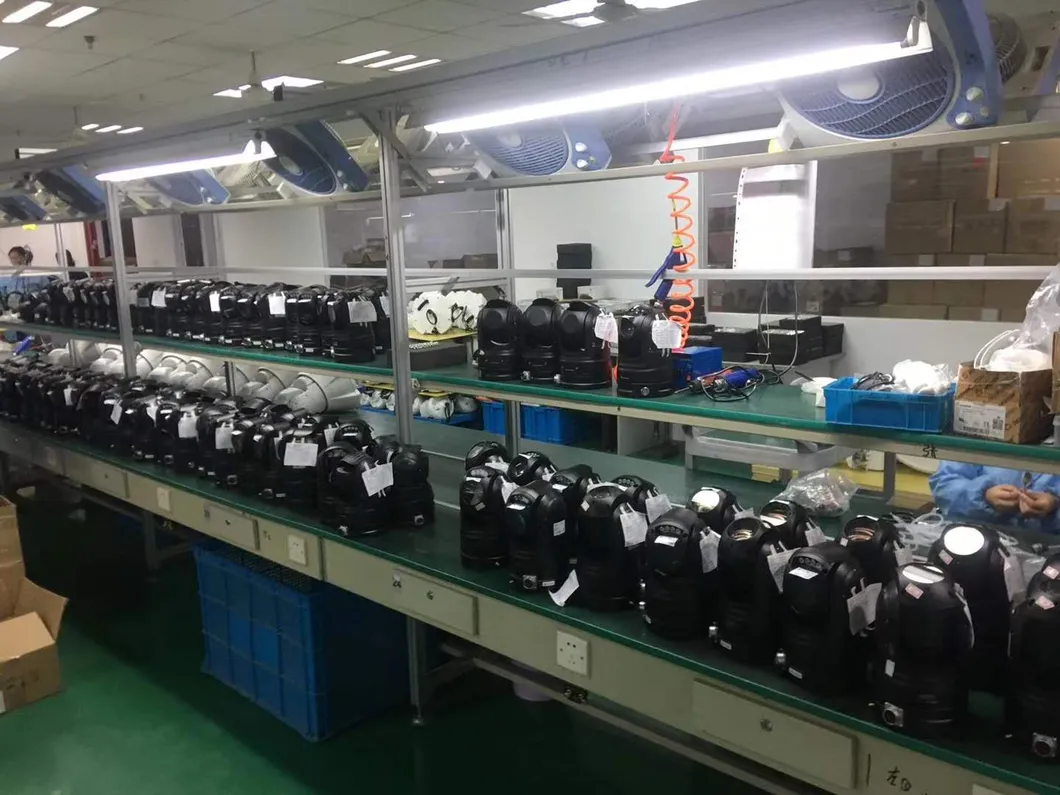

4.Company Profile

Hangzhou Soar Security Technology Co., Ltd is a professional video surveillance products provider, devoted in the front-end surveillance product design , manufacture and sales for more than 15 years, Since the foundation in 2005. We were honored as "national technical innovation enterprise" in 2015, and successfully listed in public Stock in 2016, stock code:839365.

Our R&D team consists of 60+ members of Masters and senior engineers majored in industrial design, FPGA, ISP, video analysis, AI algorithm, etc.

Our main products are various PTZ and Zoom camera module for vertical/niche market, passed ISO9001 quality certification.

Our products are widely sold all over the world. Meanwhile, we also provide OEM/ODM service. We focus on product innovation, to serve customers, create value for customers as the company's purpose.
