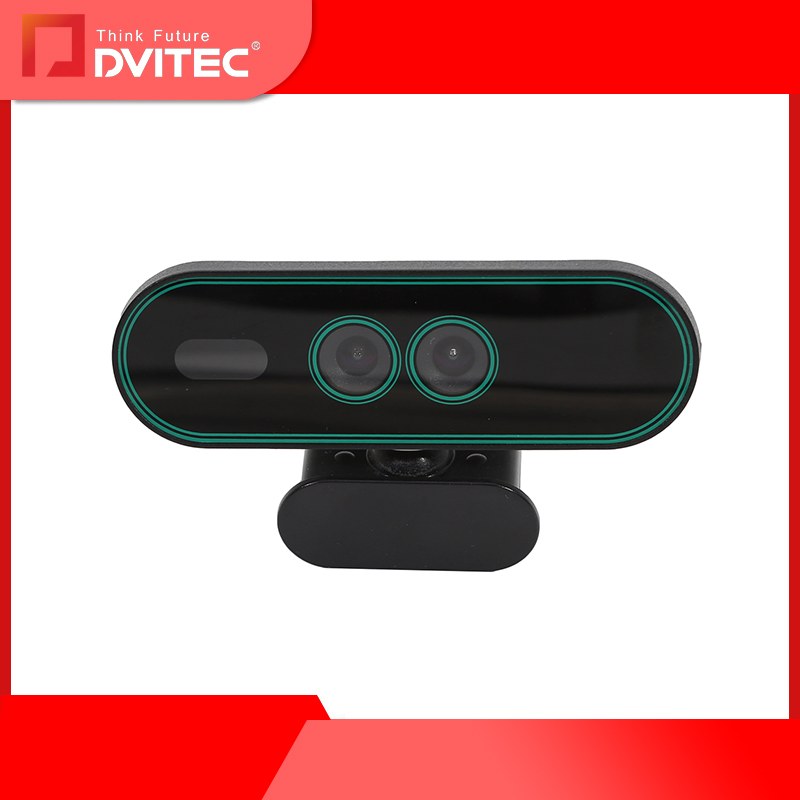

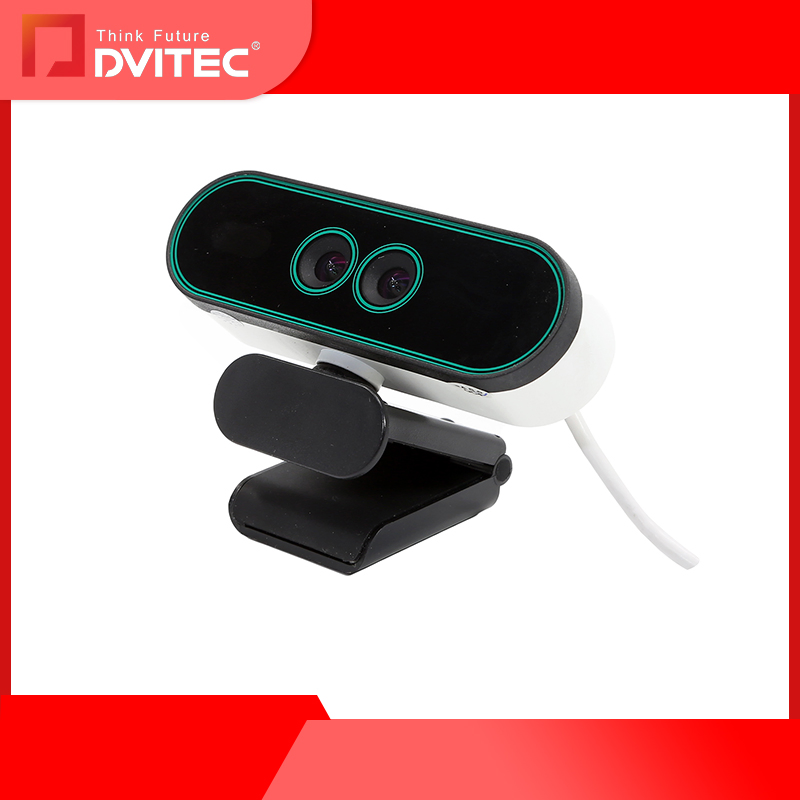

USB2.0 Bw/Hdr Binocular Tybe C Camera for Bank

Product Description

1. Product feature

· Binocular 2 MP /3 MP HD dynamic image sensor
· In vivo detection, anti-counterfeiting and anti-attack
· Embedded secret IC, support data encryption
· Black and white fixed 30 frames, color maximum 25 frames without shadow
· 0.1Lux ultra low shine effect
· 2W black and white, 1W color ultra-low power consumption
· Stable operation in a wide temperature range of -30ºC to +70ºC
·Complies with professional USB-IF WHQL RoHS CE (4KV/8KV) certification
·USB2.0 high-speed transmission/USB3.0 compatible with USB2.0 devices
· Diversified customization of device name, manufacturer and other description information
·UVC, standard protocol, is compatible with Windows XP / 7/8.1/10 / vista/seven/Mac linux2.6.2 (include UVC) a variety of systems
· Up to 3 years warranty & 130,000 hours of trouble-free life
· Minimum configuration: CPU 1.7ghz 512MB memory 40GB hard disk XP SP2
2. SPECIFICATIONS

Signal	2M B/W		3M HDR			REMARKS
Scanning System()	Progressive scan
Scanning Frequency(H)()	30HZ		25HZ
Scanning Frequency(V)	50HZ		50HZ
Image Sensor()	1/2.7" CMOS		1/3" CMOS
Effective Pixels()	1920X1080		2048X1536
Pixel size()	3.75umX3.75um		2.2umx2.2um
Image sensor Data output()	Raw Data 10bits
Video output()	MJPG/YUY2
Maximum Frame Rates ()	1920x1080 at 30fps 1280X1024 at 30fps 1280x960 at 30fps 1280x720 at 30fps 1024x768 at 30fps 800x600 at 30fps 640x480 at 30fps 352x288 at 30fps 320x240 at 30fps		2048x1536 at 20fps 1920x1080 at 25fps 1280x1024 at 25fps 1280x960 at 25fps 1280x720 at 25fps 1024x768 at 25fps 800x600 at 25fps 640x480 at 25 fps 352x288 at 25fps 320x240 at 25fps			MJPG
Maximum Frame Rates ()	1920x1080 at 5fps 1280X1024 at 5fps 1280x960 at 5fps 1280x720 at 9fps 1024x768 at 10fps 800x600 at 20fps 640x480 at 30fps 352x288 at 30fps 320x240 at 30fps		2048x1536 at 3fps 1920x1080 at 5fps 1280x1024 at 5fps 1280x720 at 9fps 1024x768 at 10fps 800x600 at 20fps 640x480 at 25 fps 352x288 at 25fps 320x240 at 25fps			YUY2
	SM2				≥80/
					≥40/
	SM3				≥3Mbps
	SM4				≥3Mbps
	DES,3DES,AES,RSA1024,RSA2048,SHA256,SM1,SM2,SM3,SM4
SNR max()	≥41dB				≥40dB
Dynamic range()	≥96dB				≥100dB
Min. Illumination()	≥0.01LUX at F1.2				≥0.1LUX at F1.2	NO LED
Digital interface()	5-pin 1.25mm USB2.0
Transfer rates()	480Mb/S
Power requirements()	5V±5%
Power Consumption ()	COLOR				MAX 1W
	B/W				MAX 2W	LED
IR-LED Wavelength()	850nm
Operating temperature(ºC)()	-30~75 ºC
Storage temperature(ºC)(&)	-40~80 ºC/0~90RH
Compliance()	USB-IF WHQL CE RoHS
Lens Mount()	M12(f=3.5MM)
Lens view ()	M12/90°
MTBF	13
FOV	Color:H:75°,V: 56° B/W:H:75°,V: 56°
OS()	Windows XP/7/8.1/10/vista/seven/Mac linux2.6.2(include UVC )

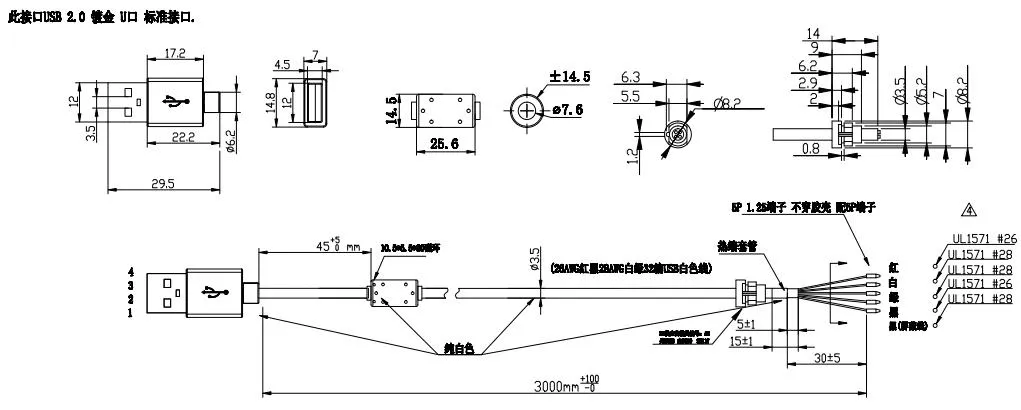

USB CONN(USB)	1	5V		USB POWER		500mA max
	2	DM		-		D-
	3	DP		-		D+
	4	GND		-		DGND
	5	COVER		-		shield

3.Sensor Dimension &Filter wavelength

USB2.0 Bw/Hdr Binocular Tybe C Camera for Bank

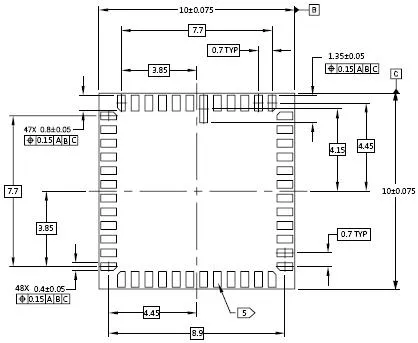

Sensor Dimension

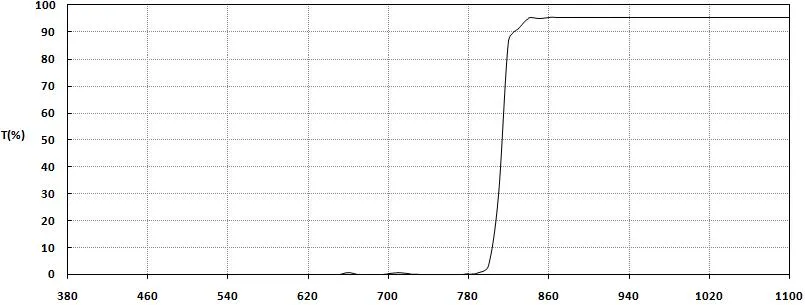

IR-Filter wavelength

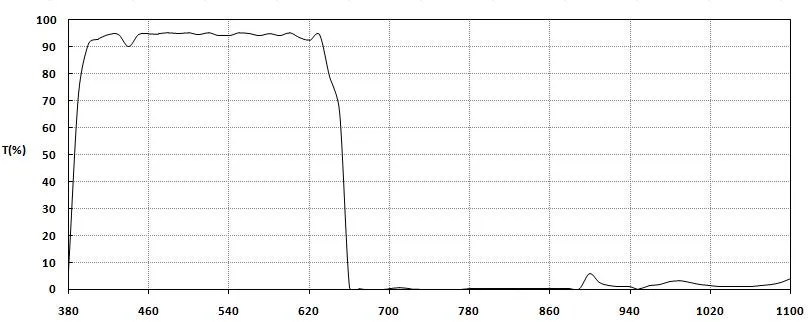

Color-IR Filter wavelength

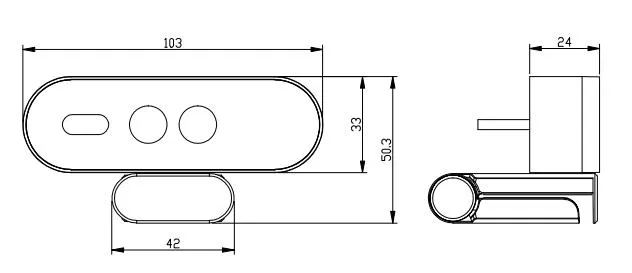

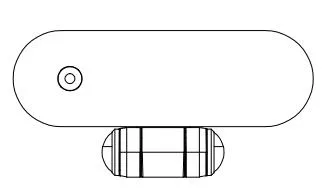

4.Product Dimension
USB2.0 Bw/Hdr Binocular Tybe C Camera for Bank

5. Viewing Angle

300W Angle (color) 75 degrees horizontal, 56 degrees vertical

200W Angle (black and white) 75 degrees horizontal, 56 degrees vertical

6. Cover proportion(mm)
