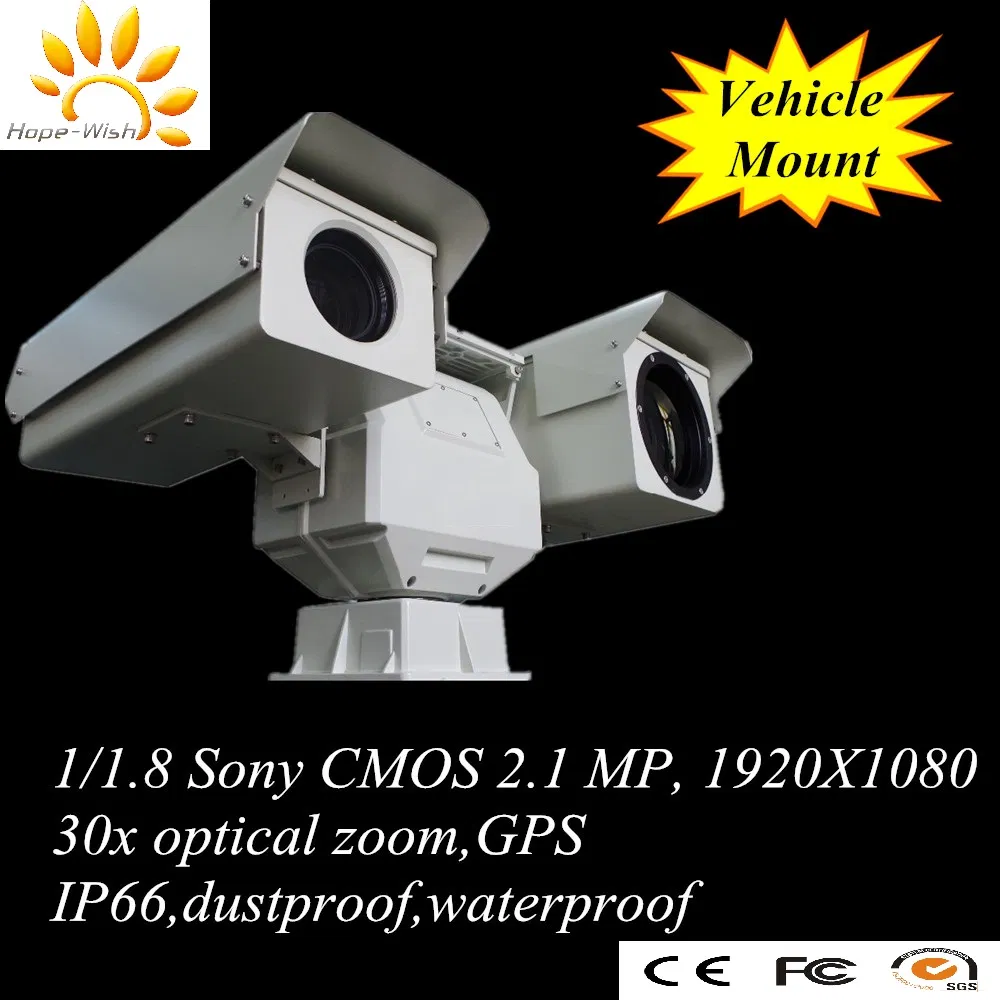

Vehicle Mounted PT Thermal Camera

Product Description

Model		GTVC4307-1930-IP	GTVC4511A-2132-IP		GTVC4516A-2050-IP	GTVC4519-2075-IP
Detection		Vehicle: 6500m	Vehicle: 8600m		Vehicle: 13000m	Vehicle: 16400m
		Human: 2500m	Human: 3400m		Human: 4800m	Human: 5800m
Identification		Vehicle:1800m	Vehicle: 2400m		Vehicle: 3400m	Vehicle: 4200m
		Human: 700m	Human: 900m		Human: 1300m	Human: 1600m
Thermal sensor		VOx uncooled detector, 324256(640512 optional); 7.5um-14um spectral range, NETD 50mk , 2X digital zoom; Image processing; AGC; 10 pseudo color; SDE image enhancement;
Thermal lens		25mm~75mm	21mm~105mm		31mm~155mm	38~190mm
		3CAM precision mechanizing(auto focus optional)
FOV		13°~4.3°	18°~3.4°		11.2°~2.2	9.5°×7.2°~1.9°×1.4°
Visible camera		1/1.8'' Sony CMOS, 2.1 mega pixels, 1920*1080, auto B/W to color at 0.001lux; ICR optical filter; H.264
Visible Lens		4.3mm~129mm, mega pixels, auto focus	8~320mm, 2.1mega pixels, motorized zoom and auto focus		15~528mm, 2mega pixels, motorized zoom and auto focus, (25~750mm optional)	25~750 mm HD lens,2 mega pixels, motorized zoom
GPS (optional)	Positioning accuracy	10m
	Time update cycle	1ms,100ms,200ms
	Time Accuracy	0.001s
	Baud rate	48,009,600,192,003,800,000,000,000,000
	Sensitivity	detect-148dBm,tracking-165dBm
PT and housing	Housing	Integrated multi-window, aluminum, with wiper, waterproof seal, IP66 protection class, dustproof and waterproof
	Internal control circuit	pan, tilt, rotate( PWM drive), the lens zoom, focus, camera DC12V power supply, laser ranging finder high and stable power supply DC24V ± 1V, color to W/B aux command, preset function, the thermostat function.
	Load duty	30kg		50kg
	Angle	Pan 360 continuous, tilt + 45 ° ~ -45 °, PT azimuth display.
	Speed	Pan 0.01~15°/S; tilt 0.01~15°/S
	Seismic reinforcement	Super-strength stainless steel center bearings, with special damping base
LRF (optional)	Wave length	1.57um
	Detection	50m-10000m(max 15000m)
	Ranging Accuracy	3m
	Repetition frequency	10 cycles / minute
	Power supply	DC24V
	Interface	RS422 full duplex
Others	Interface	1RJ45 network HD visible light vide 1PAL thermal imaging video 1* DC24V 1*RS422
	Operation temp.	-35ºC~+65ºC
	Weight	20kg-65kg(Based on specific configuration )
